| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
475 pcs
|
475 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Rated Voltage | |
| Shielding | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

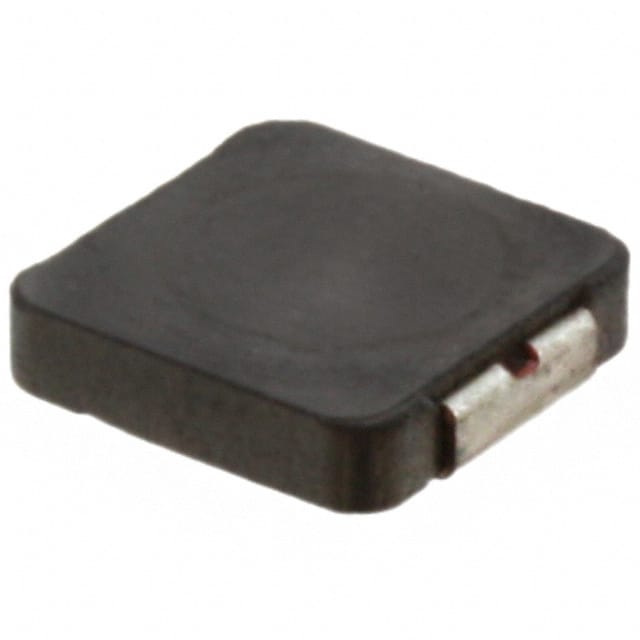

The Vishay Dale IHLP2020ABER2R2M01 is a fixed inductor from the IHLP-2020AB-01 series, featuring a shielded molded construction for low electromagnetic interference. It offers an inductance of 2.2 µH measured at 100 kHz and 0.25 V with a tolerance of ±20%. The inductor is rated for a DC current of 3.4 A that causes a 40°C temperature rise, and can handle saturation currents up to 6 A before inductance drops by 20%. The typical DC resistance is 73.6 mΩ with a maximum of 77.3 mΩ, and the self-resonant frequency is 47 MHz. The rated operating voltage across the inductor is 50 V. This component is designed for surface mount assembly in a nonstandard package measuring 5.49 mm x 5.18 mm x 1.20 mm. It operates over a temperature range of -55°C to 125°C. Typical applications include high current point-of-load converters, DC/DC converters in distributed power systems, battery-powered devices, and FPGA power supplies. The inductor is RoHS compliant and lead-free per the datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.58 | $0.58 |
| 1,000+ | $0.50 | $0.50 |
| 4,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 2.2 µH at 100 kHz, 0.25 V, 0 A with ±20% tolerance.
The rated current (heat rating) is 3.4 A, which causes a temperature rise of 40°C.
The typical DCR is 73.6 mΩ and the maximum is 77.3 mΩ at 25°C.
The self-resonant frequency is 47 MHz typical.
The inductor comes in a nonstandard surface mount package measuring 5.49 mm x 5.18 mm x 1.20 mm.
The operating temperature range is -55°C to 125°C.
The saturation current is 6 A typical, defined as the DC current causing a 20% inductance drop.
