| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,635 pcs
|
3635 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Width |

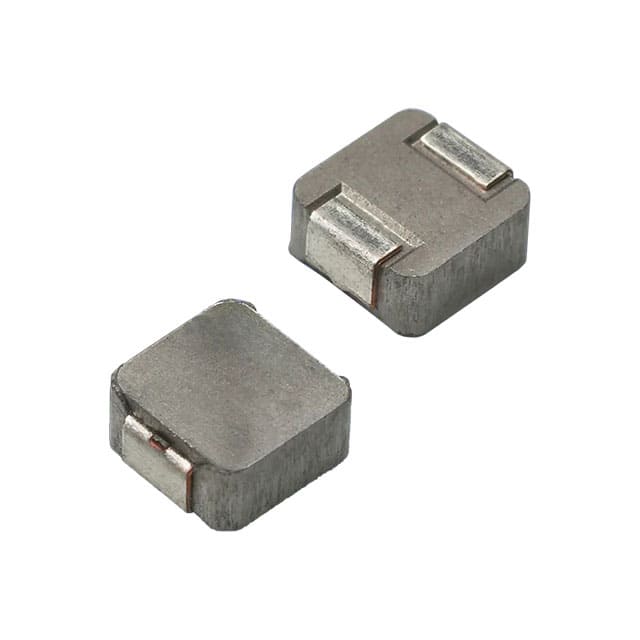

The Vishay Dale IHLP1616BZER1R0MA1 is a 1 µH shielded surface mount power inductor from the IHLP-1616BZ-A1 series. It features a metal composite core construction that provides ultra low buzz noise and handles high transient current spikes without saturation. The inductor is AEC-Q200 qualified for automotive applications and operates over a temperature range of -55°C to 125°C.
Key electrical specifications include an inductance of 1 µH at 100 kHz with ±20% tolerance, a typical DC resistance of 33 mΩ (max 37 mΩ), a rated current of 3.75 A based on a 40°C temperature rise, and a saturation current of 8.5 A typical. The self-resonant frequency is 90 MHz, making it suitable for DC/DC converter applications up to 5 MHz.
The component is packaged in a nonstandard surface mount case measuring 4.45 mm x 4.06 mm x 2.00 mm. It is shielded to minimize electromagnetic interference and is designed for use in engine control units, DC/DC converters, noise suppression for motors, and LED drivers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.92 | $0.92 |
| 10+ | $0.76 | $0.76 |
| 100+ | $0.75 | $0.75 |
| 250+ | $0.69 | $0.69 |
| 500+ | $0.65 | $0.65 |
| 1,000+ | $0.59 | $0.59 |
| 2,000+ | $0.58 | $0.58 |
| 4,000+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1 µH at 100 kHz, 0.25 V, 0 A with ±20% tolerance.
The typical DC resistance is 33 mΩ, with a maximum of 37 mΩ at 25°C.
The rated current is 3.75 A based on a 40°C temperature rise.
The saturation current is 8.5 A typical when inductance drops 20%.
Yes, it has shielded construction to minimize EMI.
The operating temperature range is -55°C to 125°C.
Yes, it is AEC-Q200 qualified for automotive applications.
