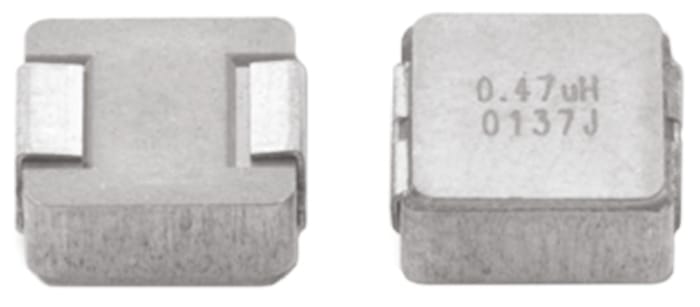

The Vishay IHLP-2525CZ-01 is a high-current, low-profile, magnetically shielded surface mount inductor. It features a metal composite core, which allows it to handle high transient current spikes without saturation and results in ultra-low buzz noise.
Key electrical specifications include an inductance of 820 nH with a tolerance of ±20%, a maximum DC current rating of 13A, and a maximum DC resistance of 8 mΩ. The inductor has a maximum self-resonant frequency of 5 MHz. It operates across a wide temperature range from -55°C to 125°C.
This inductor is constructed in a 2525 package size with surface mount termination. Its dimensions are 6.86mm in length, 3mm in height, and 6.47mm in depth. The shielded construction makes it suitable for applications requiring reduced electromagnetic interference.
Applications for the IHLP-2525CZ-01 series include PDA/notebook/desktop/server devices, high current POL converters, low profile high current power supplies, battery powered devices, and DC/DC converters in distributed power systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
820 nH with ±20% tolerance.
13 A.
8 mΩ.
5 MHz.
2525 surface mount package, dimensions 6.86 mm x 6.47 mm x 3 mm.
-55°C to 125°C.
Yes, it is shielded.
