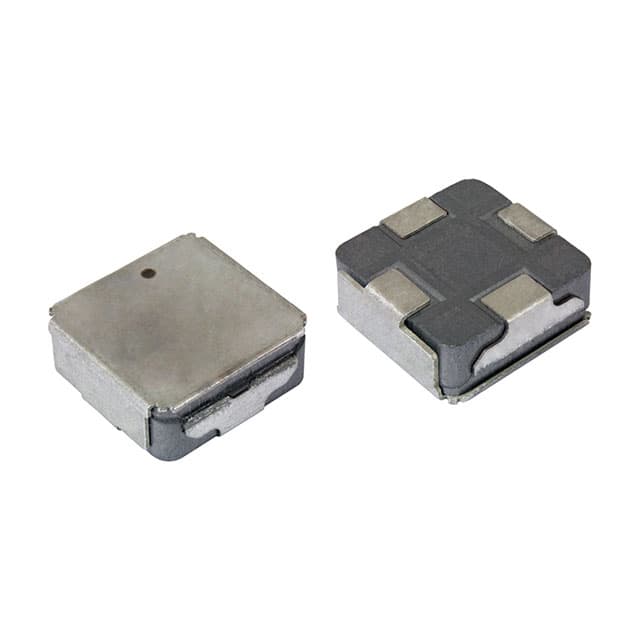

IHLE4040DDER100M5A The Vishay Dale IHLE4040DDER100M5A is a shielded fixed inductor with 10µH inductance and a 6.5A current rating. It features a Surface Mount package.
Mfr Part #:

IHLE4040DDER100M5A

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale IHLE4040DDER100M5A is a shielded fixed inductor with 10µH inductance and a 6.5A current rating. It features a Surface Mount package.
✓ Total Stock: 38 pcs

IHLE4040DDER100M5A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
38 pcs
On Request
38 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IHLE4040DDER100M5A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Ratings
Shielding
Storage Temperature
Tape & Reel
Tolerance
Width
View Similar Products (0)

IHLE4040DDER100M5A Description

Short technical summary and product information.

The Vishay Dale IHLE4040DDER100M5A is a shielded fixed inductor designed for demanding applications. It offers an inductance value of 10 µH with a tolerance of ±20% and a maximum DC resistance of 33.06 mOhm. This component is rated for a continuous current of 6.5 A and a maximum current of 8.5 A.



Featuring a metal composite material, this inductor operates within a temperature range of -55°C to 155°C and is AEC-Q200 qualified. Its dimensions are 10.92mm in length, 10.82mm in width, and 4.42mm in height. The mounting type is Surface Mount, and it comes in a Nonstandard package.



This inductor is suitable for applications requiring reliable performance under various environmental conditions. Its shielded construction helps minimize electromagnetic interference.

IHLE4040DDER100M5A Quick Information

Product Type: Fixed Inductor
Canonical Name: Vishay Dale IHLE4040DDER100M5A Shielded Fixed Inductor
Subcategory: Fixed Inductor

IHLE4040DDER100M5A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IHLE4040DDER100M5A Features

  • Shielded metal composite fixed inductor.
  • 10µH inductance with ±20% tolerance.
  • Rated for 6.5A continuous current.
  • Surface Mount package for easy assembly.
  • AEC-Q200 qualified for reliability.

IHLE4040DDER100M5A Applications

  • Suitable for power supply circuits.
  • Used in automotive applications.
  • Ideal for filtering applications.
  • Effective in noise suppression.

IHLE4040DDER100M5A FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the IHLE4040DDER100M5A?

The inductance is 10 µH.

What is the current rating for this inductor?

The continuous current rating is 6.5 A.

What is the maximum DC resistance (DCR)?

The maximum DC resistance is 33.06 mOhm.

What are the operating temperature limits?

The operating temperature range is -55°C to 155°C.

How is the IHLE4040DDER100M5A mounted?

It is a Surface Mount component.

What package type does this inductor use?

It uses a Nonstandard package.
