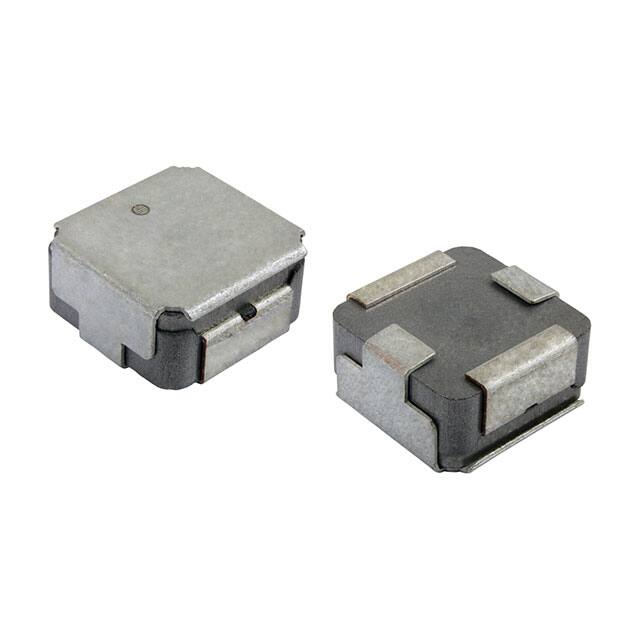

The IHLE3232DDER220M5A is a 22 µH ±20% shielded high current inductor from Vishay Dale, part of the IHLE-3232DD-5A series. It features an integrated E-field shield that provides up to 20 dB of E-field reduction at 1 cm, eliminating the need for a separate shielding component. The inductor is rated for a DC current of 3.7 A (causing a 40°C temperature rise) and has a saturation current of 3.8 A (20% inductance drop). Its maximum DC resistance is 110.21 mΩ, and the self-resonant frequency is 9 MHz.
The inductor is designed for high-temperature operation up to 155°C and is AEC-Q200 qualified for automotive applications. It comes in a nonstandard, 4-lead surface mount package with dimensions of 8.89 mm x 8.74 mm x 4.42 mm. The part is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
Typical applications include engine and transmission control units, diesel injection drivers, DC/DC converters for entertainment/navigation systems, and noise suppression for motors. The integrated E-field shield makes it particularly suitable for designs where EMI reduction is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.42 | $1.42 |
| 10+ | $1.17 | $1.17 |
| 100+ | $0.96 | $0.96 |
| 250+ | $0.96 | $0.96 |
| 500+ | $0.82 | $0.82 |
| 1,000+ | $0.82 | $0.82 |
| 2,500+ | $0.82 | $0.82 |
| 5,000+ | $0.80 | $0.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 22 µH with a tolerance of ±20%.
The rated current is 3.7 A, which is the DC current that causes an approximate temperature rise of 40°C.
The maximum DC resistance is 110.21 mΩ at 25°C.
The self-resonant frequency is 9 MHz.
The operating temperature range is -55°C to +155°C, with the part temperature not exceeding 155°C under worst-case conditions.
Yes, it is AEC-Q200 qualified for automotive applications.
The package dimensions are 8.89 mm (length) x 8.74 mm (width) x 4.42 mm (height), in a nonstandard 4-lead surface mount package.
