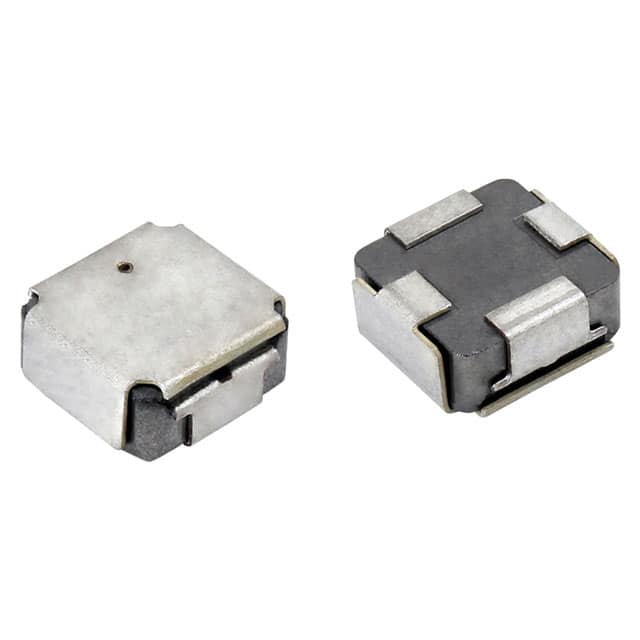

The Vishay Dale IHLE2525CDER220M5A is a 22 µH shielded inductor from the IHLE-2525CD-5A series. It uses a metal composite core and features an integrated E-field shield for EMI reduction. The inductance tolerance is ±20%.
Electrical specifications include a maximum DC resistance of 174 mΩ (typical 163 mΩ), a heat rating current of 2.8 A, and a saturation current of 2.2 A. The self-resonant frequency is 8.3 MHz, and the rated voltage is 50 V. The operating temperature range is -55°C to 155°C.
The component is surface mountable in a nonstandard 4-lead package measuring 7.21 mm x 7.12 mm x 3.35 mm. It is AEC-Q200 qualified for automotive applications.
Typical applications include engine and transmission control units, diesel injection drivers, DC/DC converters for entertainment/navigation systems, and noise suppression for motors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
| 10+ | $1.09 | $1.09 |
| 100+ | $0.90 | $0.90 |
| 1,000+ | $0.78 | $0.78 |
| 2,000+ | $0.74 | $0.74 |
| 5,000+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 22 µH with a tolerance of ±20%.
The maximum DC resistance is 174 mΩ, with a typical value of 163 mΩ at 25°C.
The heat rating current is 2.8 A (DC current causing ~40°C rise) and the saturation current is 2.2 A (DC current causing ~20% inductance drop).
The typical self-resonant frequency is 8.3 MHz.
The package is a nonstandard 4-lead surface mount package. Dimensions are 7.21 mm x 7.12 mm x 3.35 mm.
The operating temperature range is -55°C to 155°C.
Yes, it is AEC-Q200 qualified, as verified by the datasheet.
