| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Stability | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

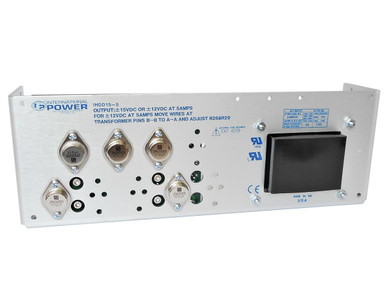

The International Power DC Power Supplies IHDD15-5 is a linear AC/DC converter designed for various applications. It provides dual outputs, selectable between +/-12 VDC and +/-15 VDC, each capable of delivering up to 5 Amps. The unit operates with a universal AC input voltage range of 100-240 VAC.
Key electrical specifications include line and load regulation of +/-0.05%, with a maximum output ripple of 5.0 mV pk-pk. Transient response is less than 50 µsec for a 50% load change. The power supply features automatic foldback for short circuit protection and automatic current limiting for overload protection. It is designed for chassis mounting and includes remote sensing capability.
With an efficiency of 45% (typical), the IHDD15-5 operates within a temperature range of 0°C to 50°C, derating linearly to 40% at 70°C. Storage temperature ranges from -40°C to +85°C. The unit meets EMI standards FCC CFR Title 47 Part 15 Sub-Part B and RFI standards EN55022/CISPR22-Level B. It is UL recognized (File#E133338), CE marked, and compliant with US and Canadian standards including IEC 60950-1.
The IHDD15-5 offers selectable output voltages of +/-12 VDC or +/-15 VDC.
The maximum output current for each output is 5 Amps.
The input voltage range is 100/120/220/240 VAC.
The operating temperature range is 0°C to 50°C, derated linearly to 40% at 70°C.
Yes, it features automatic foldback short circuit protection.
This power supply is designed for chassis mounting.
It complies with FCC CFR Title 47 Part 15 Sub-Part B for EMI and EN55022/CISPR22-Level B for RFI.
