| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage |

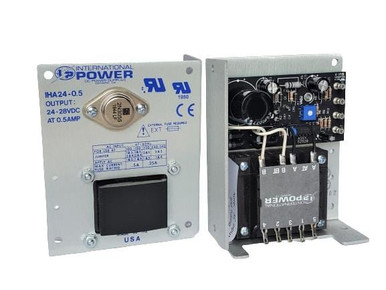

This linear AC DC converter from International Power DC Power Supplies, part number IHA24-0.5, is designed for ITE (Commercial) applications. It accepts a wide input voltage range of 100 to 240 VAC and delivers a stable 24V output at 500 mA (0.5A).
The unit features an adjustable output and is designed for chassis mounting, making it suitable for integration into various systems. Its dimensions are 123.7mm in length, 101.6mm in width, and 41.1mm in height. The operating temperature range is from 0°C to 70°C, with derating applied.
Compliance is indicated by CE, cURus, and UKCA approvals, adhering to standard 60950-1. The efficiency is rated at 45%.
The IHA24-0.5 provides a 24V output at 0.5A.
The IHA24-0.5 is a linear AC DC converter.
The input voltage range is 100 to 240 VAC.
It is designed for chassis mounting.
The operating temperature range is 0°C to 70°C, with derating.
The dimensions are 123.7mm L x 101.6mm W x 41.1mm H.
