| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

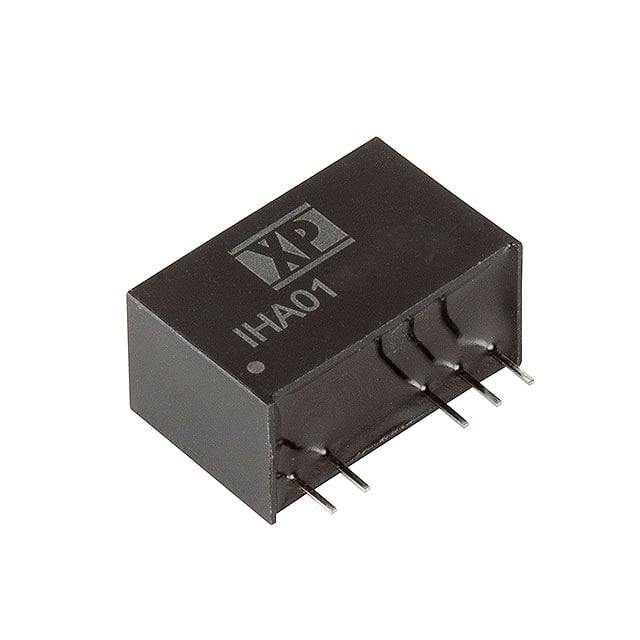

The XP Power IHA0105S12 is a 1W isolated DC-DC converter from the IHA01 series. It provides a single 12V output at 83mA from a 4.5V to 5.5V input (5V nominal). The module offers 6000VDC input-to-output isolation with a working voltage of 250VAC, making it suitable for applications requiring high galvanic isolation.
Electrical characteristics include an efficiency of 76%, line regulation of ±1.2% per 1% input change, and load regulation of 10% from 10% to full load. Ripple and noise are limited to 200mV pk-pk (20MHz bandwidth). The converter features continuous short circuit protection and can drive capacitive loads up to 220µF. Switching frequency ranges from 20kHz to 50kHz.
The IHA0105S12 operates over a temperature range of -40°C to +85°C with a temperature coefficient of 0.03%/°C. It is housed in a 7-SIP module with 4 leads, measuring 19.5mm x 12.5mm x 12.0mm and weighing 4.3g. The through-hole mounting style is suitable for automated assembly.
Designed for commercial ITE (Information Technology Equipment) applications, this converter is ideal for powering isolated circuits, gate drive supplies, and sensor interfaces where high isolation voltage is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.65 | $7.65 |
| 5+ | $7.42 | $7.42 |
| 10+ | $7.19 | $7.19 |
| 20+ | $6.89 | $6.89 |
| 100+ | $6.56 | $6.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 5.5V DC, with a nominal of 5V.
Output voltage is 12V DC and output current is 83mA.
The isolation voltage is 6000VDC minimum between input and output.
The operating temperature range is -40°C to +85°C.
The part is listed as RoHS3 compliant, but this data is unverified.
The package is a 7-SIP Module with 4 leads, through-hole mounting.
Typical efficiency is 76%.
