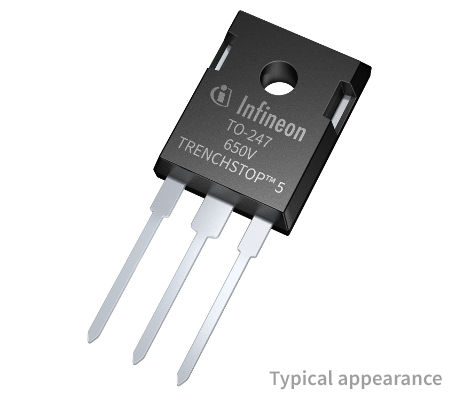

IGW30N60T The Infineon IGW30N60T is a Low Loss IGBT from the TRENCHSTOP™ Series. It offers a 600V collector-emitter voltage and 30A collector current.
Mfr Part #:

IGW30N60T

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon IGW30N60T is a Low Loss IGBT from the TRENCHSTOP™ Series. It offers a 600V collector-emitter voltage and 30A collector current.
✓ Total Stock: 2,900 pcs
$ Price Range: $3.63

IGW30N60T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,900 pcs
On Request
2900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IGW30N60T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Gate Charge
Input Capacitance
Lead Style
Mounting Type
Power Dissipation
Storage Temperature
View Similar Products (0)

IGW30N60T Description

Short technical summary and product information.

The Infineon IGW30N60T is a TRENCHSTOP™ Series Low Loss IGBT designed for applications such as frequency converters and uninterruptible power supplies. It features a very low typical collector-emitter saturation voltage (VCE(sat)) of 1.5V at 25°C and a maximum junction temperature of 175°C.



Key electrical characteristics include a 600V collector-emitter voltage, 30A DC collector current at 25°C, and a pulsed collector current of 90A. The IGBT has a short circuit withstand time of 5µs and a gate-emitter voltage rating of ±20V. It also offers a typical transconductance of 16.7S and a typical input capacitance (Ciss) of 1630pF.



Packaged in a PG-TO247-3 case, this IGBT is suitable for through-hole mounting. It operates within a junction temperature range of -40°C to 175°C. The device is RoHS compliant and designed for high ruggedness and very high switching speed.

IGW30N60T Quick Information

Product Type: IGBT
Series: TRENCHSTOP™ Series
Canonical Name: IGW30N60T TRENCHSTOP™ Series Low Loss IGBT
Subcategory: Single IGBTs

IGW30N60T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: true

IGW30N60T Estimated Pricing

Qty Low High
1+ $3.63 $3.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

IGW30N60T Features

  • Very low VCE(sat) of 1.5V typical.
  • Maximum junction temperature of 175°C.
  • Short circuit withstand time of 5µs.
  • Designed for frequency converters and UPS.
  • RoHS compliant.

IGW30N60T Applications

  • Used in frequency converters.
  • Suitable for uninterruptible power supplies.
  • High ruggedness applications.
  • High switching speed applications.

IGW30N60T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage?

600V.

What is the package type?

PG-TO247-3 (through-hole).

What is the operating junction temperature range?

-40°C to 175°C.

What is the maximum collector current?

45A at 25°C case temperature, limited by bondwire; 39A at 100°C.

What is the typical collector-emitter saturation voltage?

1.5V at 25°C, 30A, 15V gate.

What is the short circuit withstand time?

5 µs at VGE=15V, VCC≤400V, Tj≤150°C.

What is the gate charge?

167 nC typical at VCC=480V, IC=30A, VGE=15V.
