Mfr Part #:

IGD515EI

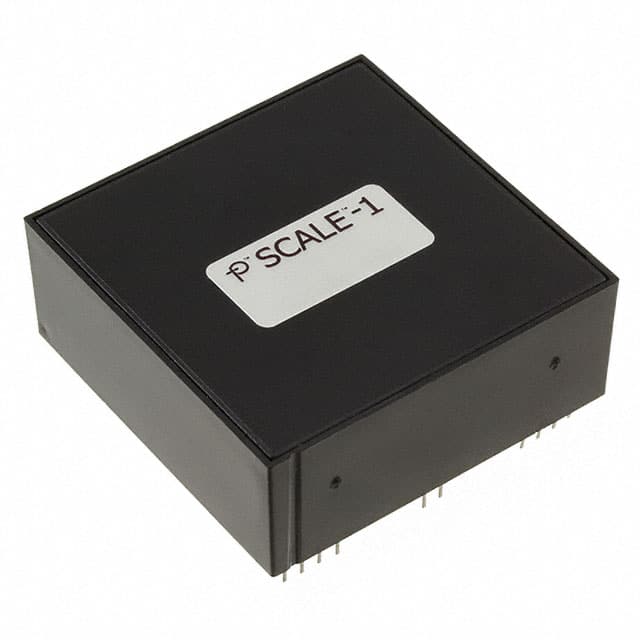

Name: IGD515EI
Brand: Power Integrations
SKU: IGD515EI

Mfr Name: Power Integrations

Description:

IC GATE DRVR HI/LOW SIDE MODULE

Stock on Request

IGD515EI Description

Short technical summary and product information.

IC GATE DRVR HI/LOW SIDE MODULE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Gate Drivers
Manufacturer Name	Power Integrations
Channel Type	Single
Current	15A, 15A
Driven Configuration	High-Side or Low-Side
Gate Type	IGBT, N-Channel, P-Channel MOSFET
Logic Voltage	0.9V, 3.8V
Mounting Type	Through Hole
Number of Drivers	1
Operating Temperature	-40°C ~ 85°C (TA)
Rise	40ns, 40ns
Supplier Device Package	Module
Voltage	12V ~ 16V
