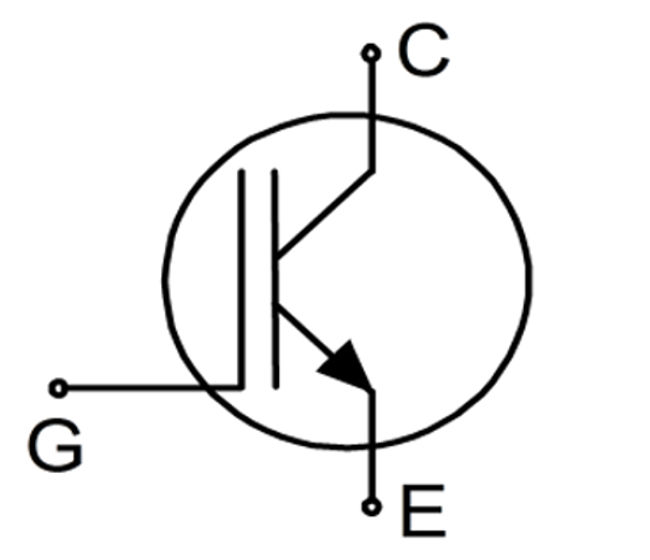

The Infineon IGB10N60T is a 600V, 10A Low Loss IGBT from the TRENCHSTOP™ series. It is built using TRENCHSTOP™ and Fieldstop technology, offering very tight parameter distribution and high ruggedness.
Key electrical characteristics include a typical VCE(sat) of 1.5V at 25°C and a maximum junction temperature of 175°C. The device features a short circuit withstand time of 5µs and low gate charge. Its NPT technology allows for easy parallel switching due to a positive temperature coefficient in VCE(sat).
This IGBT is designed for frequency inverters used in applications such as washing machines, fans, pumps, and vacuum cleaners. It is qualified according to JEDEC standards for target applications and comes in a PG-TO263-3 package suitable for surface mounting.
The component is Pb-free and RoHS compliant. PSpice models are available on the Infineon website.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (Vce) for the IGB10N60T is 600V.
The IGB10N60T has a DC collector current rating of 24A at 25°C case temperature and 18A at 100°C case temperature.
The typical saturation voltage (VCE(sat)) is 1.5V at 25°C and 1.8V at 175°C, both with a collector current of 10A and gate-emitter voltage of 15V.
The maximum operating junction temperature (Tj) for the IGB10N60T is 175°C.
The IGB10N60T is supplied in the PG-TO263-3 package.
Yes, the IGB10N60T is RoHS compliant and features Pb-free lead plating.
The Moisture Sensitivity Level (MSL) for the IGB10N60T is 1.
