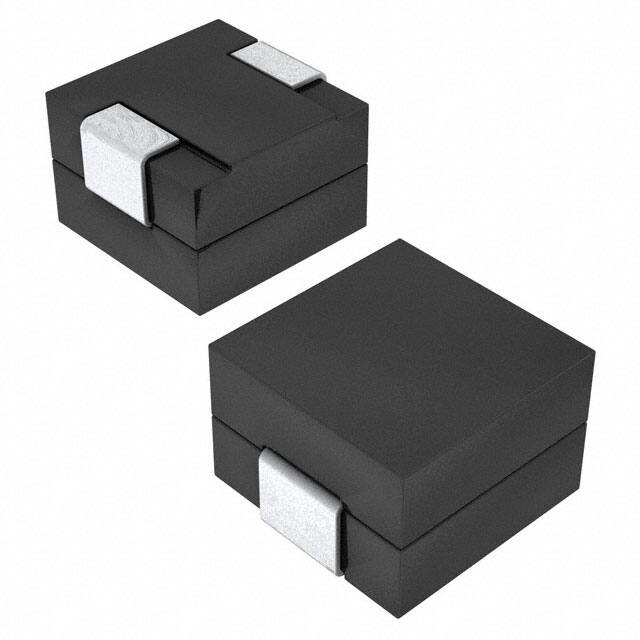

The IFLR2727EZERR15M01 is a shielded, low profile, high current fixed inductor from Vishay Dale's IFLR-2727EZ-01 series. It offers a nominal inductance of 150 nH at 100 kHz, 1 V, 0 A with a tolerance of ±20%. The component is designed for high current applications, with a typical heat rating current of 45 A (ΔT of 40 °C) and a typical saturation current of 30 A (L0 drops approximately 20%).
The inductor features a maximum DC resistance (DCR) of 0.35 mΩ at 25 °C, contributing to high efficiency in power conversion circuits. Its shielded construction helps minimize electromagnetic interference, and the frequency range extends up to 2 MHz. The part is housed in a 2-SMD, J-Lead package measuring 7.00 mm x 7.00 mm with a height of 5.00 mm, suitable for surface mount assembly.
Typical applications include notebook, desktop, and server power supplies, high current point-of-load (POL) converters, low profile high current power supplies, and DC/DC converters in distributed power systems. The operating temperature range is -40 °C to +125 °C. All test data is referenced to 25 °C ambient, and the part temperature (ambient plus temperature rise) should not exceed 125 °C under worst case operating conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.79 | $0.79 |
| 10+ | $0.65 | $0.65 |
| 100+ | $0.53 | $0.53 |
| 500+ | $0.52 | $0.52 |
| 1,000+ | $0.43 | $0.43 |
| 2,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 150 nH (0.15 µH) measured at 100 kHz, 1 V, 0 A, with a tolerance of ±20%.
The typical heat rating current is 45 A (based on a ΔT of 40 °C), and the typical saturation current is 30 A (when L0 drops approximately 20%).
The maximum DC resistance is 0.35 mΩ at 25 °C.
It uses a 2-SMD, J-Lead package with surface mount mounting. The dimensions are 7.00 mm x 7.00 mm with a height of 5.00 mm.
The operating temperature range is -40 °C to +125 °C.
Yes, it has shielded construction.
