| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| SVHC Present | |
| Stability | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

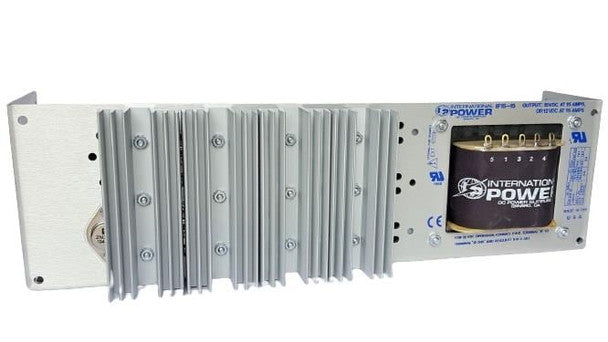

The IF15-15 from International Power DC Power Supplies is a linear AC/DC converter designed for ITE (Commercial) applications. It provides a single output of 15 VDC at 15A, with an alternative configuration of 12 VDC at 16A. The unit accepts a wide input voltage range of 100 to 240 VAC and operates at a frequency range of 47-63 Hz.
Key electrical specifications include automatic current limit for overload protection and automatic foldback for short circuit protection. Line regulation is +/- 0.05% for a 10% line change, and load regulation is +/- 0.05% for a 50% load change. The output ripple is a maximum of 5.0 mV pk-pk, with a transient response of less than 50 µsec per 50% load change. Efficiency is typically 45%.
This power supply is designed for chassis mounting and includes remote sensing capabilities. It operates within a temperature range of 0°C to 50°C at full rated output, derating linearly to 40% at 70°C. Storage temperature ranges from -40°C to +85°C. The unit meets EMI standards FCC CFR Title 47 Part 15 Sub-Part B and RFI standards EN55022/CISPR22-Level B. It is UL recognized for US and Canada (File#E133338) and carries a CE Mark, complying with LVD 92/59/EEC and US/Canadian standards ANSI/UL 60950-1 and CAN/CSA C22.2 #60950-1.
Fan cooling is mandatory at loads of 250 Watts or higher, requiring a minimum of 50 CFM. The dimensions are 16.75" L x 4.88" W x 3.50" H (425.5mm x 124.0mm x 88.9mm).
The IF15-15 accepts 100-240 VAC at 47-63 Hz.
The IF15-15 can provide 15 VDC at 15 A or 12 VDC at 16 A.
The operating temperature is 0°C to 50°C full rated, derated linearly to 40% capacity at 70°C.
The IF15-15 is chassis mount.
Output ripple is 5 mV pk-pk maximum.
Overload protection is automatic current limit. Short circuit protection is automatic foldback. Overvoltage protection is not provided but can be added with an IOVP24 module.
Dimensions are 425.5 mm x 124.0 mm x 88.9 mm (16.75" x 4.88" x 3.50").
