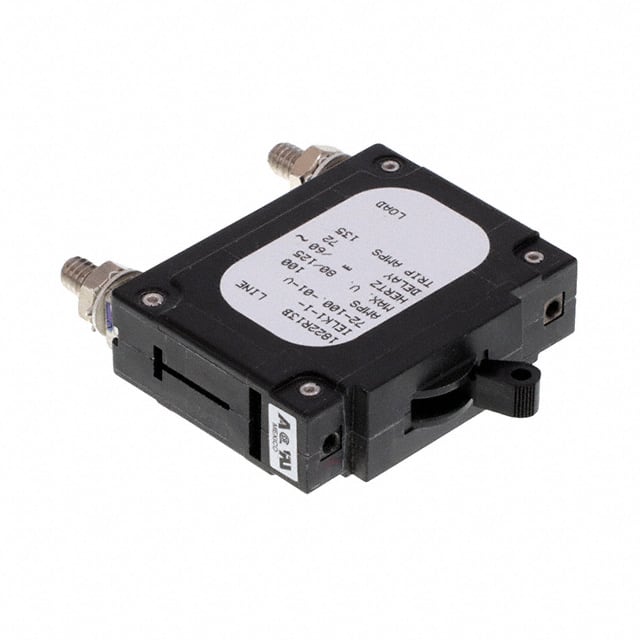

IELK1-1-72-100.-01-V The Sensata IELK1-1-72-100.-01-V is a single-pole circuit breaker featuring a magnetic hydraulic delay mechanism. It offers a 100A current rating and 250V voltage rating.
Mfr Part #:

IELK1-1-72-100.-01-V

Mfr Name: Sensata
Sensata
The Sensata IELK1-1-72-100.-01-V is a single-pole circuit breaker featuring a magnetic hydraulic delay mechanism. It offers a 100A current rating and 250V voltage rating.
Stock on Request

IELK1-1-72-100.-01-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

IELK1-1-72-100.-01-V Description

Short technical summary and product information.

This Sensata IELK1-1-72-100.-01-V is a single-pole circuit breaker designed for panel mounting. It utilizes a magnetic hydraulic delay for its tripping mechanism, providing reliable protection.



The breaker is rated for a maximum current of 100A and a voltage of 250V. It features a lever actuator for easy operation and has no illumination. The breaker type is specifically a Magnetic (Hydraulic Delay) circuit breaker.



Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. The approval agency listed is UL1077, suggesting suitability for various applications requiring safety certifications.

IELK1-1-72-100.-01-V Quick Information

Product Type: Circuit Breaker
Series: IELK
Canonical Name: Sensata IELK1-1-72-100.-01-V Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic Hydraulic Delay

IELK1-1-72-100.-01-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IELK1-1-72-100.-01-V Features

  • 100A current rating for high power applications.
  • 250V voltage rating for versatile use.
  • Magnetic hydraulic delay for controlled tripping.
  • Single pole design for simpler circuits.
  • Panel mount with lever actuator.

IELK1-1-72-100.-01-V Applications

  • Suitable for industrial control panels.
  • Used in power distribution systems.
  • Applicable in equipment protection circuits.
  • Ideal for applications needing delay.

IELK1-1-72-100.-01-V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the Sensata IELK1-1-72-100.-01-V?

250V.

What is the current rating of this circuit breaker?

100A.

What type of circuit breaker is the IELK1-1-72-100.-01-V?

Magnetic hydraulic delay (hydraulic-magnetic) circuit breaker.

How many poles does this circuit breaker have?

1 pole.

What actuator type does this circuit breaker use?

Lever actuator.

What is the mounting style of this circuit breaker?

Panel mount.

Does this circuit breaker have illumination?

No, it is not illuminated.
