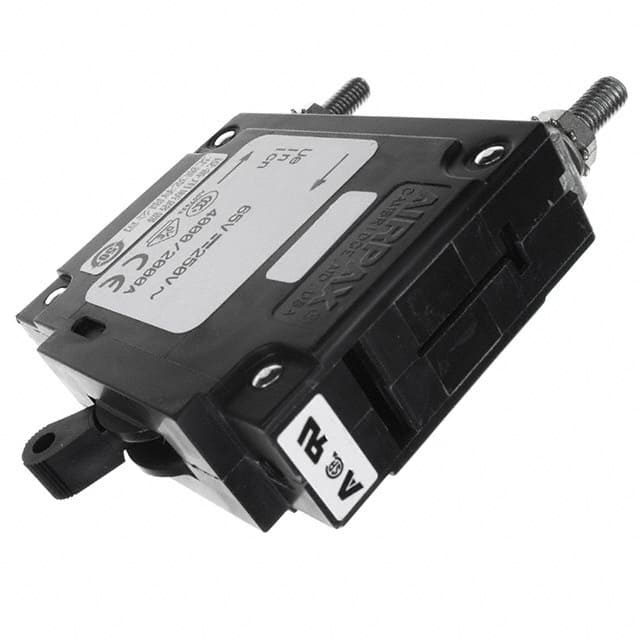

IELK1-1-72-100.-01 The Sensata IELK1-1-72-100.-01 is a 1-pole magnetic circuit breaker rated for 100A and 240VAC. It features a panel mount design with a lever actuator.
Mfr Part #:

IELK1-1-72-100.-01

Mfr Name: Sensata
Sensata
The Sensata IELK1-1-72-100.-01 is a 1-pole magnetic circuit breaker rated for 100A and 240VAC. It features a panel mount design with a lever actuator.
Stock on Request

IELK1-1-72-100.-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

IELK1-1-72-100.-01 Description

Short technical summary and product information.

This Sensata IELK1-1-72-100.-01 is a single-pole circuit breaker designed for reliable circuit protection. It operates with a current rating of 100A and a voltage rating of 240VAC.



The breaker type is magnetic with a hydraulic delay, providing specific trip characteristics. It is designed for panel mounting and features a convenient lever actuator for operation. The unit is approved by UL1077, ensuring compliance with relevant safety standards.



Key electrical specifications include a 100A current rating and a 240V voltage rating. The breaker is built with a magnetic tripping mechanism and a hydraulic delay system. Its mechanical design includes a single pole configuration and a lever for actuation, suitable for panel mounting applications.

IELK1-1-72-100.-01 Quick Information

Product Type: Circuit Breaker
Canonical Name: Sensata IELK1-1-72-100.-01 Magnetic (Hydraulic Delay) Circuit Breaker
Subcategory: Thermal Magnetic Circuit Breaker

IELK1-1-72-100.-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IELK1-1-72-100.-01 Features

  • 100A current rating for high power circuits.
  • 240VAC voltage rating for AC applications.
  • Magnetic breaker with hydraulic delay.
  • Panel mount design for easy integration.
  • Lever actuator for simple operation.

IELK1-1-72-100.-01 Applications

  • Suitable for industrial control panels.
  • Used in power distribution systems.
  • Ideal for equipment protection.
  • Applicable in marine environments.
  • General purpose circuit protection.

IELK1-1-72-100.-01 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the IELK1-1-72-100.-01?

The current rating is 100A.

What is the voltage rating of this circuit breaker?

The voltage rating is 240VAC.

What type of breaker is the IELK1-1-72-100.-01?

It is a magnetic hydraulic delay circuit breaker.

How many poles does this breaker have?

It is a single-pole (1-pole) breaker.

What is the actuator type?

The actuator type is a lever.

What mounting type does this breaker use?

It uses panel mount.

What approvals does the IELK1-1-72-100.-01 have?

It is UL1077 approved.
