Mfr Part #:

IEGS1-39101-30-UV

Mfr Name: Sensata

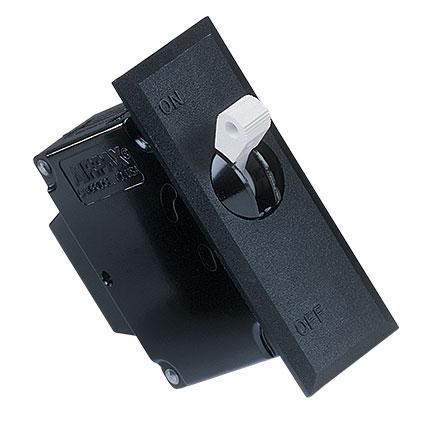

The Sensata Technologies IEGS1-39101-30-UV is a 1-pole magnetic hydraulic delay circuit breaker with a toggle actuator and panel mount. It operates within a temperature range of -40 C to 85 C.

Stock on Request

IEGS1-39101-30-UV Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Circuit Breakers
Manufacturer Name	Sensata
Actuator Type	Toggle
Approval Agency	CSA, TUV, UL1077
Breaker Type	Magnetic (Hydraulic Delay)
Mounting Type	Panel Mount
Number of Poles	1
Termination Style	Push-On

View Similar Products (0)

IEGS1-39101-30-UV Description

Short technical summary and product information.

This Sensata Technologies Airpax IEGS1-39101-30-UV is a magnetic-hydraulic delay circuit breaker designed for reliable circuit protection. It features a single pole configuration and a toggle actuator for easy operation.

The breaker is designed for panel mounting, offering flexibility in installation. Its operating temperature range spans from -40 C to +85 C, making it suitable for various environmental conditions. The termination style is push-on for convenient connection.

Key specifications include a 1-pole design and approval by CSA, TUV, and UL1077. The circuit breaker is specified as RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected, though these compliance statuses are noted as having low confidence and require verification.

IEGS1-39101-30-UV Quick Information

Product Type: Circuit Breaker

Series: IEGS1

Canonical Name: Sensata Technologies Airpax IEGS1-39101-30-UV Magnetic Hydraulic Delay Circuit Breaker

Subcategory: Magnetic Hydraulic Delay

IEGS1-39101-30-UV Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IEGS1-39101-30-UV Features

1-pole magnetic hydraulic delay circuit breaker.
Toggle actuator for user operation.
Panel mount for flexible installation.
Wide operating temperature range: -40 C to 85 C.
Approved by CSA, TUV, and UL1077.

IEGS1-39101-30-UV Applications

Provides reliable circuit protection.
Suitable for various industrial applications.
Designed for easy integration into panels.
Operates across a broad temperature range.

IEGS1-39101-30-UV FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range of the IEGS1-39101-30-UV?

-40°C to 85°C.

How many poles does this circuit breaker have?

1 pole.

What type of actuator does this breaker use?

Toggle actuator.

What is the breaker type?

Magnetic (Hydraulic Delay).

What mounting type is supported?

Panel mount.

What termination style does it have?

Push-on.

What approvals does this circuit breaker have?

CSA, TUV, UL1077.
