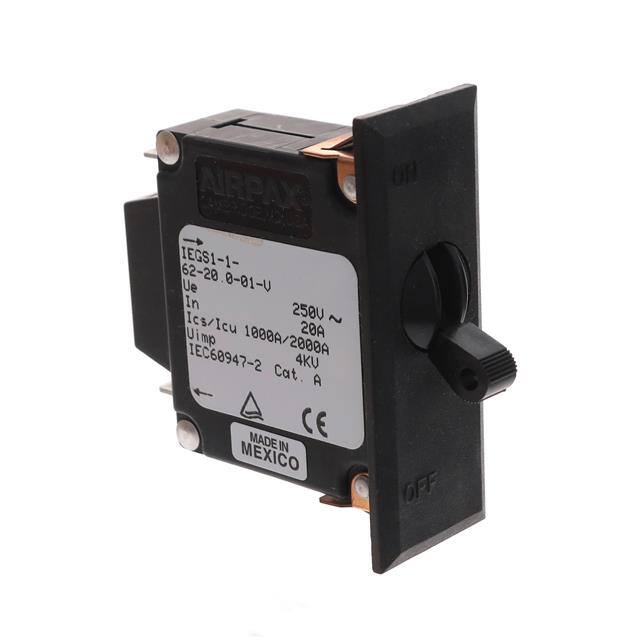

IEGS1-1-62-20.0-01-V The Sensata IEGS1-1-62-20.0-01-V is a single-pole circuit breaker featuring a magnetic hydraulic delay and a lever actuator. It is rated for 20A and 250V.
Mfr Part #:

IEGS1-1-62-20.0-01-V

Mfr Name: Sensata
Sensata
The Sensata IEGS1-1-62-20.0-01-V is a single-pole circuit breaker featuring a magnetic hydraulic delay and a lever actuator. It is rated for 20A and 250V.
Stock on Request

IEGS1-1-62-20.0-01-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

IEGS1-1-62-20.0-01-V Description

Short technical summary and product information.

This Sensata IEGS1-1-62-20.0-01-V is a single-pole circuit breaker designed for panel mounting. It utilizes a magnetic hydraulic delay mechanism for reliable operation and features a lever actuator.



The breaker has a current rating of 20A and a voltage rating of 250V. It is approved by CSA, TUV, and UL1077, indicating compliance with relevant safety standards.



Key specifications include a 1-pole configuration and a magnetic (hydraulic delay) breaker type. The mounting type is panel mount, making it suitable for integration into various electrical enclosures and systems.

IEGS1-1-62-20.0-01-V Quick Information

Product Type: Circuit Breaker
Series: IEGS
Canonical Name: Sensata IEGS1-1-62-20.0-01-V Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic (Hydraulic Delay)

IEGS1-1-62-20.0-01-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IEGS1-1-62-20.0-01-V Features

  • 20A current rating for power distribution.
  • 250V voltage rating for AC/DC circuits.
  • Magnetic hydraulic delay for controlled tripping.
  • Single pole for basic circuit protection.
  • Panel mount for easy enclosure integration.

IEGS1-1-62-20.0-01-V Applications

  • Used in control panel assemblies.
  • Suitable for power distribution units.
  • Applied in industrial equipment protection.
  • Incorporated into electrical enclosures.

IEGS1-1-62-20.0-01-V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of this circuit breaker?

20A.

What is the voltage rating of this circuit breaker?

250V.

How many poles does this circuit breaker have?

1 pole.

What type of circuit breaker is it?

Magnetic hydraulic delay.

What is the actuator type?

Lever.

What mounting type does it use?

Panel mount.

What approvals does this circuit breaker have?

CSA, TUV, UL1077.

IEGS1-1-62-20.0-01-V Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
IEGS6-1-61-20.0-G-01-V
IEGS6-1-61-20.0-G-01-V
Sensata
This Sensata IEGS6-1-61-20.0-G-01-V is a single-pole, magnetic hydraulic delay circuit breaker rated for 20A and 250V. It features a lever actuator and panel mount type.
View Part
IEG6-1-72-20.0-01-V
IEG6-1-72-20.0-01-V
Sensata
The Sensata IEG6-1-72-20.0-01-V is a 1-pole magnetic hydraulic delay circuit breaker rated at 20A with 250VAC and 80VDC voltage ratings. It features a lever actuator and panel mount design.
View Part
IEG1-1-63F-20.0-A-01-V
IEG1-1-63F-20.0-A-01-V
Sensata
The IEG1-1-63F-20.0-A-01-V is a 1-pole magnetic hydraulic delay circuit breaker from Sensata, rated 20A at 250V. It features a panel mount lever actuator and is approved to CSA, TUV, and UL1077 standards.
View Part
IEGS6-1-61-20.0-01-V
IEGS6-1-61-20.0-01-V
Sensata
The Sensata IEGS6-1-61-20.0-01-V is a single-pole circuit breaker with a 20A current rating and 250V voltage rating. It features a magnetic hydraulic delay mechanism and panel mount capability.
View Part
