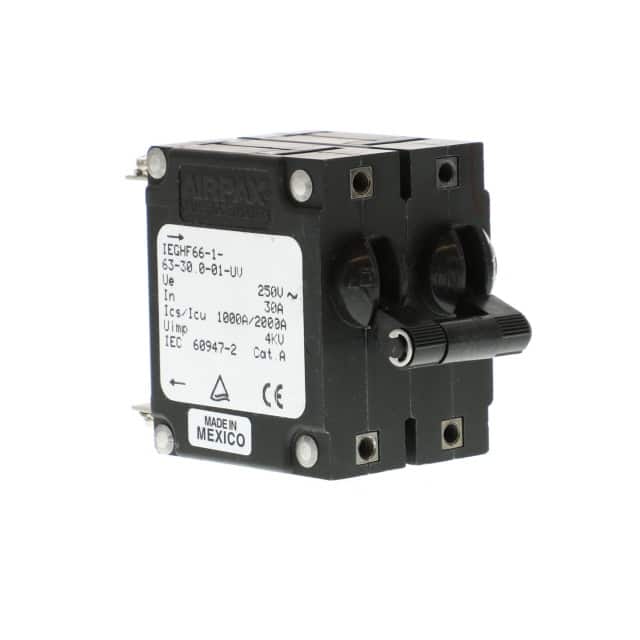

IEGHF66-1-63-30.0-01-UV The Sensata IEGHF66-1-63-30.0-01-UV is a 2-pole magnetic hydraulic delay circuit breaker. It features a 30A current rating and a 250V voltage rating.
Mfr Part #:

IEGHF66-1-63-30.0-01-UV

Mfr Name: Sensata
Sensata
The Sensata IEGHF66-1-63-30.0-01-UV is a 2-pole magnetic hydraulic delay circuit breaker. It features a 30A current rating and a 250V voltage rating.
Stock on Request

IEGHF66-1-63-30.0-01-UV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

IEGHF66-1-63-30.0-01-UV Description

Short technical summary and product information.

This Sensata circuit breaker, part number IEGHF66-1-63-30.0-01-UV, is designed for reliable circuit protection. It operates with a 30A current rating and a 250V voltage rating, suitable for various electrical systems.



The breaker type is magnetic with a hydraulic delay, offering specific trip characteristics. It has a lever actuator and is designed for panel mounting, ensuring secure installation in control panels or equipment.



Key approvals include CSA, TUV, and UL1077, indicating compliance with relevant safety standards. The unit has no illumination and is RoHS3 compliant, with MSL 1 and REACH unaffected status.

IEGHF66-1-63-30.0-01-UV Quick Information

Product Type: Circuit Breaker
Series: IEGHF66
Canonical Name: Sensata IEGHF66-1-63-30.0-01-UV Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic (Hydraulic Delay)

IEGHF66-1-63-30.0-01-UV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IEGHF66-1-63-30.0-01-UV Features

  • 30A current rating for protection.
  • 250V voltage rating for systems.
  • Magnetic hydraulic delay mechanism.
  • Panel mount design for installation.
  • CSA, TUV, UL1077 approved.

IEGHF66-1-63-30.0-01-UV Applications

  • Industrial control panels.
  • Power distribution systems.
  • Equipment protection circuits.
  • Automation systems.

IEGHF66-1-63-30.0-01-UV FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of this circuit breaker?

250V.

What is the mounting type?

Panel mount.

What is the current rating?

30A.

How many poles does it have?

2 poles.

What type of breaker is it?

Magnetic hydraulic with time delay.

What actuator type does it have?

Lever actuator.

What approvals does it have?

CSA, TUV, UL1077.
