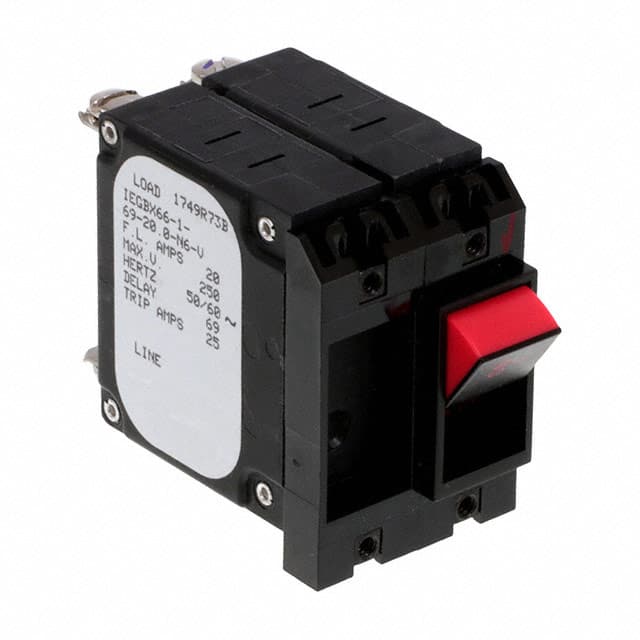

IEGBX66-1-69-20.0-N6-V The Sensata IEGBX66-1-69-20.0-N6-V is a 2-pole magnetic-hydraulic circuit breaker. It features a rocker actuator and panel mount design.
Mfr Part #:

IEGBX66-1-69-20.0-N6-V

Mfr Name: Sensata
Sensata
The Sensata IEGBX66-1-69-20.0-N6-V is a 2-pole magnetic-hydraulic circuit breaker. It features a rocker actuator and panel mount design.
Stock on Request

IEGBX66-1-69-20.0-N6-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

IEGBX66-1-69-20.0-N6-V Description

Short technical summary and product information.

This Sensata IEGBX66-1-69-20.0-N6-V is a magnetic-hydraulic circuit breaker designed for panel mounting. It offers a current rating of 20A and a voltage rating of 250V.



The breaker type is magnetic with a hydraulic delay, suitable for applications requiring specific trip characteristics. It has a rocker actuator and is a 2-pole unit.



Compliance is listed as RoHS3 Compliant, with MSL 1 and REACH Unaffected. Approval agencies include CSA, TUV, and UL1077. The illumination is none.

IEGBX66-1-69-20.0-N6-V Quick Information

Product Type: Circuit Breaker
Series: IEGBX66
Canonical Name: Sensata IEGBX66-1-69-20.0-N6-V Magnetic-Hydraulic Circuit Breaker
Subcategory: Magnetic (Hydraulic Delay)

IEGBX66-1-69-20.0-N6-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IEGBX66-1-69-20.0-N6-V Features

  • 20A current rating for protection.
  • 250V voltage rating.
  • Magnetic-hydraulic delay mechanism.
  • Rocker actuator for control.
  • Panel mount design.

IEGBX66-1-69-20.0-N6-V Applications

  • Suitable for general circuit protection.
  • Used in control panel assemblies.
  • Industrial equipment applications.
  • Power distribution systems.

IEGBX66-1-69-20.0-N6-V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of this circuit breaker?

250V.

What is the current rating?

20A.

How many poles does it have?

2 poles.

What type of breaker is it?

Magnetic (Hydraulic Delay).

What approvals does it have?

CSA, TUV, UL1077.

What is the actuator type?

Rocker.

What is the mounting type?

Panel Mount.
