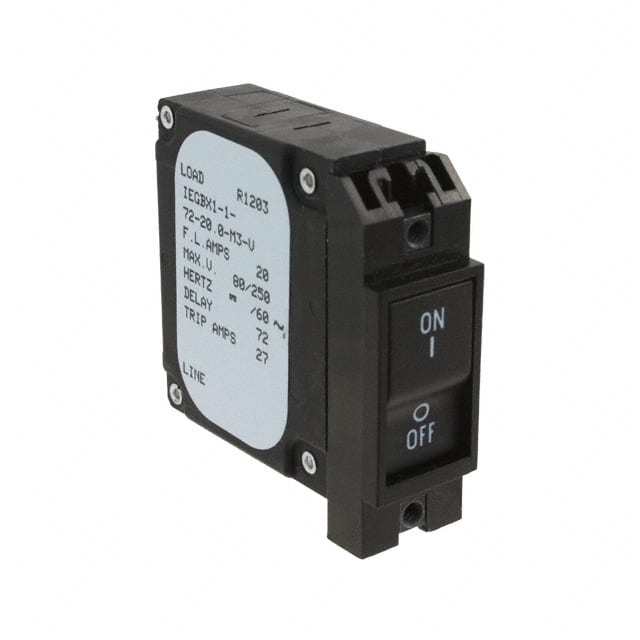

IEGBX1-1-72-20.0-M3-V The Sensata IEGBX1-1-72-20.0-M3-V is a magnetic hydraulic delay circuit breaker. It features a 20A current rating and 250VAC/80VDC voltage rating.
Mfr Part #:

IEGBX1-1-72-20.0-M3-V

Mfr Name: Sensata
Sensata
The Sensata IEGBX1-1-72-20.0-M3-V is a magnetic hydraulic delay circuit breaker. It features a 20A current rating and 250VAC/80VDC voltage rating.
Stock on Request

IEGBX1-1-72-20.0-M3-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Failure Rate
Industrial Grade
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

IEGBX1-1-72-20.0-M3-V Description

Short technical summary and product information.

This Sensata IEGBX1-1-72-20.0-M3-V is a single-pole circuit breaker designed for reliable circuit protection. It operates with a magnetic hydraulic delay mechanism, suitable for applications requiring specific trip characteristics.



The breaker has a current rating of 20A and can handle AC voltages up to 250V and DC voltages up to 80V. It is designed for panel mounting, offering a convenient installation solution in various equipment and systems. The actuator type is a lever, providing a clear visual indication of the circuit status.



Key approvals include CSA, TUV, and UL1077, indicating compliance with relevant safety standards. The series is IEG, and the part is packaged in bulk. This component is ideal for use in industrial, commercial, and consumer electronics where overcurrent protection is essential.

IEGBX1-1-72-20.0-M3-V Quick Information

Product Type: Circuit Breaker
Series: IEG
Canonical Name: Sensata IEGBX1-1-72-20.0-M3-V Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic Hydraulic Delay

IEGBX1-1-72-20.0-M3-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

IEGBX1-1-72-20.0-M3-V Features

  • 20A current rating for protection.
  • 250VAC and 80VDC voltage capacity.
  • Magnetic hydraulic delay mechanism.
  • Panel mount design for easy installation.
  • CSA, TUV, UL1077 approved.

IEGBX1-1-72-20.0-M3-V Applications

  • Industrial control systems.
  • Power distribution units.
  • Commercial equipment.
  • Consumer electronics.
  • Automotive applications.

IEGBX1-1-72-20.0-M3-V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the IEGBX1-1-72-20.0-M3-V?

250VAC and 80VDC.

What is the current rating?

20A.

What type of circuit breaker is this?

Magnetic (Hydraulic Delay).

How many poles does it have?

1 pole.

What actuator type does it use?

Lever.

What approvals does it hold?

CSA, TUV, UL1077.

What is the mounting style?

Panel mount.
