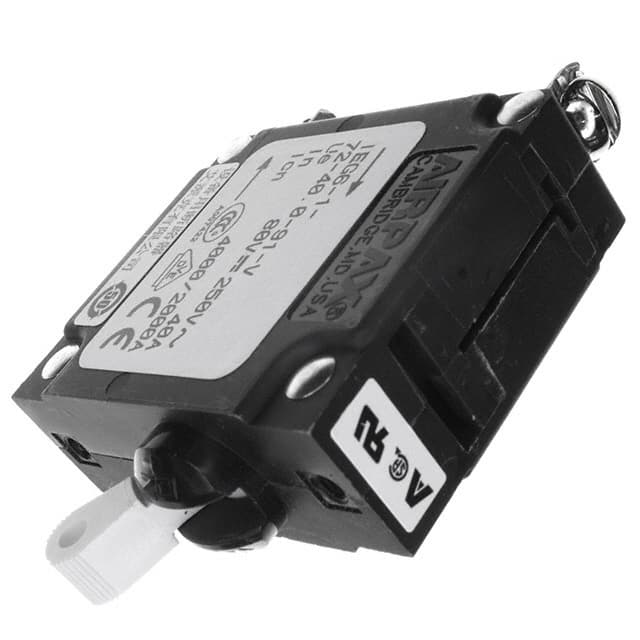

IEG6-1-72-40.0-91-V The Sensata IEG6-1-72-40.0-91-V is a single-pole circuit breaker rated for 40A and 250VAC/80VDC. It features a panel mount design and a lever actuator.
Mfr Part #:

IEG6-1-72-40.0-91-V

Mfr Name: Sensata
Sensata
The Sensata IEG6-1-72-40.0-91-V is a single-pole circuit breaker rated for 40A and 250VAC/80VDC. It features a panel mount design and a lever actuator.
Stock on Request

IEG6-1-72-40.0-91-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

IEG6-1-72-40.0-91-V Description

Short technical summary and product information.

This Sensata IEG6-1-72-40.0-91-V is a single-pole circuit breaker designed for panel mounting. It offers a current rating of 40A and a voltage rating of 250VAC or 80VDC.



The breaker type is magnetic with a hydraulic delay, and it is activated by a lever. Approval agencies include CSA, TUV, and UL1077, indicating compliance with relevant safety standards.



This component is suitable for applications requiring reliable overcurrent protection. Its construction and specifications make it a robust choice for various electrical systems.

IEG6-1-72-40.0-91-V Quick Information

Product Type: Circuit Breaker
Series: IEG6
Canonical Name: Sensata IEG6-1-72-40.0-91-V Circuit Breaker
Subcategory: Circuit Breaker

IEG6-1-72-40.0-91-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IEG6-1-72-40.0-91-V Features

  • 40A current rating for protection.
  • 250VAC/80VDC voltage capability.
  • Magnetic breaker with hydraulic delay.
  • Panel mount design for easy installation.
  • Lever actuator for operation.

IEG6-1-72-40.0-91-V Applications

  • Used in industrial control panels.
  • Protects power distribution circuits.
  • Suitable for equipment with inrush currents.
  • Ideal for commercial electrical systems.

IEG6-1-72-40.0-91-V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the IEG6-1-72-40.0-91-V?

The circuit breaker is rated for 250VAC and 80VDC.

What is the current rating?

40A.

What type of breaker is this?

Magnetic (Hydraulic Delay).

How many poles does it have?

1 pole.

What is the mounting type?

Panel mount.

What is the actuator type?

Lever.

What approvals does it have?

CSA, TUV, UL1077.
