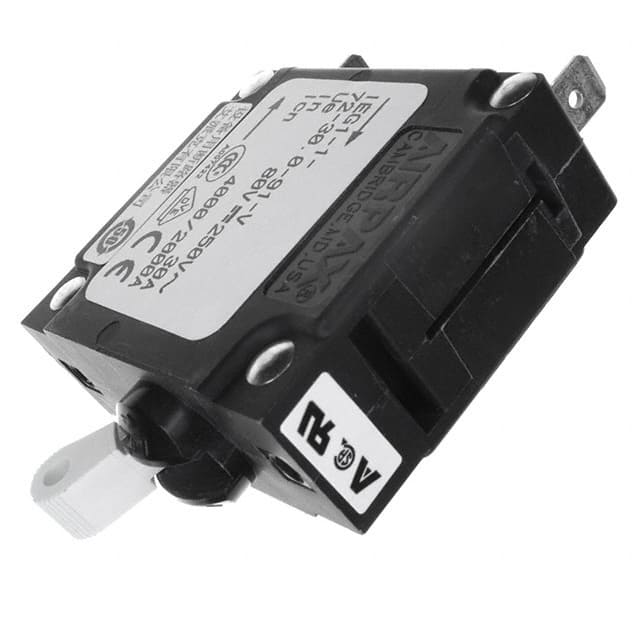

This Sensata IEG1-1-72-30.0-91-V is a single-pole circuit breaker designed for reliable circuit protection. It offers a current rating of 30A and can handle up to 250VAC or 80VDC.
The breaker type is magnetic with a hydraulic delay, providing specific trip characteristics. It is designed for panel mounting, making it suitable for integration into various electrical enclosures and systems. The actuator type is a lever for easy operation.
This component is approved by CSA, TUV, and UL1077, indicating compliance with relevant safety standards. It is also RoHS3 Compliant, Moisture Sensitivity Level 1, and REACH Unaffected, addressing environmental and material requirements for many applications.
Key specifications include a 30A current rating, 250VAC/80VDC voltage rating, single-pole configuration, and panel mount capability. The magnetic hydraulic delay mechanism ensures appropriate protection against overcurrent conditions.
The circuit breaker is rated for 250VAC and 80VDC.
30A.
Magnetic (Hydraulic Delay).
1 pole.
Lever actuator.
Panel mount.
CSA, TUV, UL1077.
