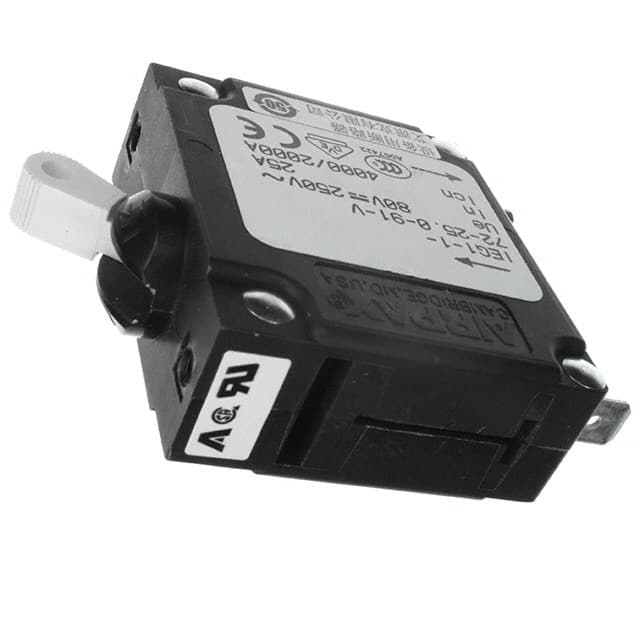

IEG1-1-72-25.0-91-V The Sensata IEG1-1-72-25.0-91-V is a single-pole, magnetic hydraulic delay circuit breaker rated for 25A at 250VAC and 80VDC. It features a panel mount design.
Mfr Part #:

IEG1-1-72-25.0-91-V

Mfr Name: Sensata
Sensata
The Sensata IEG1-1-72-25.0-91-V is a single-pole, magnetic hydraulic delay circuit breaker rated for 25A at 250VAC and 80VDC. It features a panel mount design.
Stock on Request

IEG1-1-72-25.0-91-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

IEG1-1-72-25.0-91-V Description

Short technical summary and product information.

This Sensata IEG1-1-72-25.0-91-V is a single-pole circuit breaker designed for reliable circuit protection. It offers a current rating of 25A and voltage ratings of 250VAC and 80VDC.



The breaker type is magnetic with a hydraulic delay, providing specific trip characteristics suitable for various applications. It is designed for panel mounting, ensuring secure installation in control panels and equipment.



Compliance includes CSA, TUV, and UL1077 agency approvals. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The REACH status is REACH Unaffected.

IEG1-1-72-25.0-91-V Quick Information

Product Type: Circuit Breaker
Series: IEG
Canonical Name: Sensata IEG1-1-72-25.0-91-V Circuit Breaker
Subcategory: Circuit Breaker

IEG1-1-72-25.0-91-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IEG1-1-72-25.0-91-V Features

  • Rated for 25A current and 250VAC/80VDC.
  • Magnetic breaker with hydraulic delay.
  • Designed for panel mount installation.
  • Approved by CSA, TUV, and UL1077.
  • RoHS3 Compliant and MSL 1.

IEG1-1-72-25.0-91-V Applications

  • Suitable for general circuit protection.
  • Ideal for control panel installations.
  • Used in systems requiring specific trip curves.
  • Applicable in 250VAC and 80VDC environments.

IEG1-1-72-25.0-91-V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the IEG1-1-72-25.0-91-V circuit breaker?

The current rating is 25A.

What are the voltage ratings for this circuit breaker?

It is rated for 250 VAC and 80 VDC.

What type of breaker is the IEG1-1-72-25.0-91-V?

It is a Magnetic (Hydraulic Delay) breaker type.

How many poles does this circuit breaker have?

This circuit breaker has 1 pole.

What mounting type is used for this circuit breaker?

The mounting type is Panel Mount.

Is the IEG1-1-72-25.0-91-V RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.
