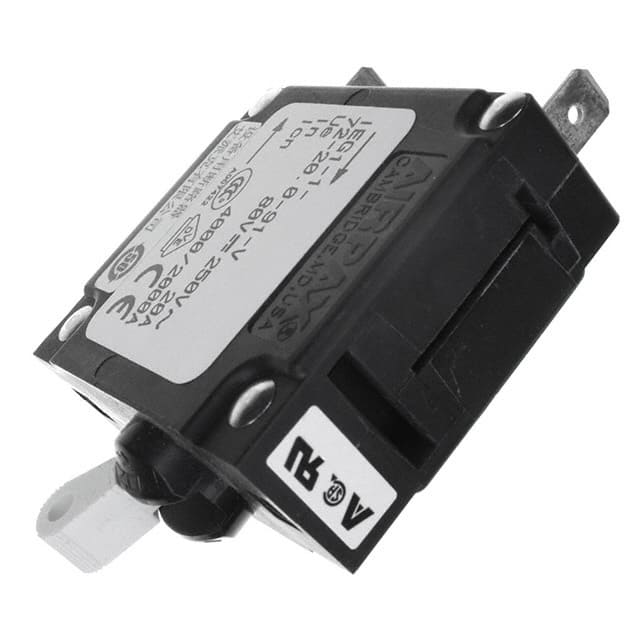

IEG1-1-72-20.0-91-V The Sensata IEG1-1-72-20.0-91-V is a single-pole, magnetic (hydraulic delay) circuit breaker rated for 20A and 250VAC/80VDC. It features panel mounting and is RoHS3 compliant.
Mfr Part #:

IEG1-1-72-20.0-91-V

Mfr Name: Sensata
Sensata
The Sensata IEG1-1-72-20.0-91-V is a single-pole, magnetic (hydraulic delay) circuit breaker rated for 20A and 250VAC/80VDC. It features panel mounting and is RoHS3 compliant.
Stock on Request

IEG1-1-72-20.0-91-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

IEG1-1-72-20.0-91-V Description

Short technical summary and product information.

This Sensata IEG1-1-72-20.0-91-V is a single-pole circuit breaker designed for reliable circuit protection. It utilizes a magnetic (hydraulic delay) mechanism for its tripping action and is rated to handle up to 20 Amperes of current.



The breaker supports a maximum voltage of 250VAC and 80VDC, making it suitable for various AC and DC applications. It is designed for panel mounting, allowing for easy integration into control panels and equipment.



Compliance certifications include CSA, TUV, and UL1077. The RoHS status is reported as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. REACH status is REACH Unaffected. This component is identified by DK Part Number 723-1157-ND.

IEG1-1-72-20.0-91-V Quick Information

Product Type: Circuit Breaker
Series: IEG
Canonical Name: Sensata IEG1-1-72-20.0-91-V Magnetic (Hydraulic Delay) Circuit Breaker
Subcategory: Circuit Breaker

IEG1-1-72-20.0-91-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IEG1-1-72-20.0-91-V Features

  • 20A current rating for circuit protection.
  • 250VAC and 80VDC voltage handling.
  • Magnetic (hydraulic delay) breaker type.
  • Single-pole configuration.
  • Panel mount for easy integration.

IEG1-1-72-20.0-91-V Applications

  • Suitable for AC and DC power systems.
  • Used in control panel assemblies.
  • Provides overcurrent protection.
  • Integrates into equipment enclosures.

IEG1-1-72-20.0-91-V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the Sensata IEG1-1-72-20.0-91-V?

20A.

What is the voltage rating of this circuit breaker?

250VAC and 80VDC.

How many poles does the IEG1-1-72-20.0-91-V have?

1 pole.

What type of breaker is this?

Magnetic (Hydraulic Delay).

What mounting type is used for this breaker?

Panel Mount.

What safety approvals does the Sensata breaker hold?

CSA, TUV, UL1077.
