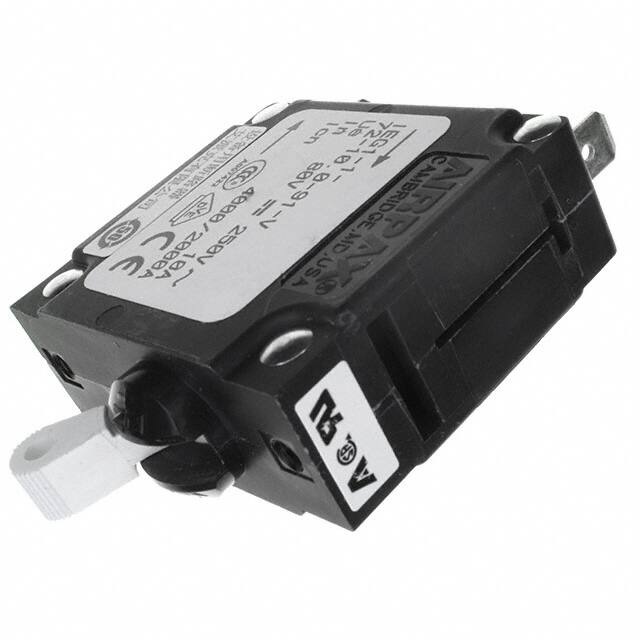

IEG1-1-72-10.0-91-V The Sensata Technologies IEG1-1-72-10.0-91-V is a magnetic hydraulic delay circuit breaker with a 10A current rating and 250VAC voltage rating. It is designed for panel mounting.
Mfr Part #:

IEG1-1-72-10.0-91-V

Mfr Name: Sensata
Sensata
The Sensata Technologies IEG1-1-72-10.0-91-V is a magnetic hydraulic delay circuit breaker with a 10A current rating and 250VAC voltage rating. It is designed for panel mounting.
Stock on Request

IEG1-1-72-10.0-91-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

IEG1-1-72-10.0-91-V Description

Short technical summary and product information.

The Sensata Technologies IEG1-1-72-10.0-91-V is a single-pole circuit breaker designed for reliable electrical protection. It features a magnetic hydraulic delay mechanism for precise tripping characteristics.



This breaker has a maximum current rating of 10A and a voltage rating of 250VAC, with an 80VDC rating also specified. It is suitable for panel mounting and utilizes a lever actuator for operation. The unit is approved by CSA, TUV, and UL1077, indicating compliance with relevant safety standards.



Packaged in quantities of 40, this circuit breaker is a component within the broader circuit protection category. Its specifications make it suitable for various industrial and commercial applications requiring overcurrent protection.

IEG1-1-72-10.0-91-V Quick Information

Product Type: Circuit Breaker
Series: IEG1
Canonical Name: Sensata Technologies IEG1-1-72-10.0-91-V Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Plastic Case Circuit Breaker

IEG1-1-72-10.0-91-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IEG1-1-72-10.0-91-V Features

  • 10A current rating for protection.
  • 250VAC voltage rating.
  • Magnetic hydraulic delay mechanism.
  • Panel mount with lever actuator.
  • CSA, TUV, UL1077 approvals.

IEG1-1-72-10.0-91-V Applications

  • Industrial control panels.
  • Power distribution systems.
  • Equipment protection circuits.
  • Automation systems.

IEG1-1-72-10.0-91-V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of this circuit breaker?

The voltage rating is 250VAC and 80VDC.

What is the current rating of this circuit breaker?

10A.

How many poles does this circuit breaker have?

1 pole.

What type of circuit breaker is this?

Magnetic (Hydraulic Delay).

What is the actuator type?

Lever.

What mounting type is used?

Panel Mount.

What approvals does this circuit breaker have?

CSA, TUV, UL1077.
