| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,230 pcs
|
1230 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Current - DC Forward (If) (Max) | |
| Industrial Grade | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage | |
| Voltage - DC Reverse (Vr) |
The IDWD30G120C5XKSA1 is a 5th generation CoolSiC silicon carbide Schottky diode from Infineon Technologies. It is rated for a maximum reverse voltage of 1200V and an average rectified current of 87A. The diode features a low forward voltage of 1.65V at a forward current of 30A, contributing to high system efficiency.
This SiC Schottky diode offers no reverse recovery current and no forward recovery, enabling higher frequency operation and increased power density in designs. Its temperature-independent switching behavior and specified dv/dt ruggedness make it suitable for demanding industrial applications. The device is qualified for industrial applications according to relevant JEDEC 47/20/22 tests.

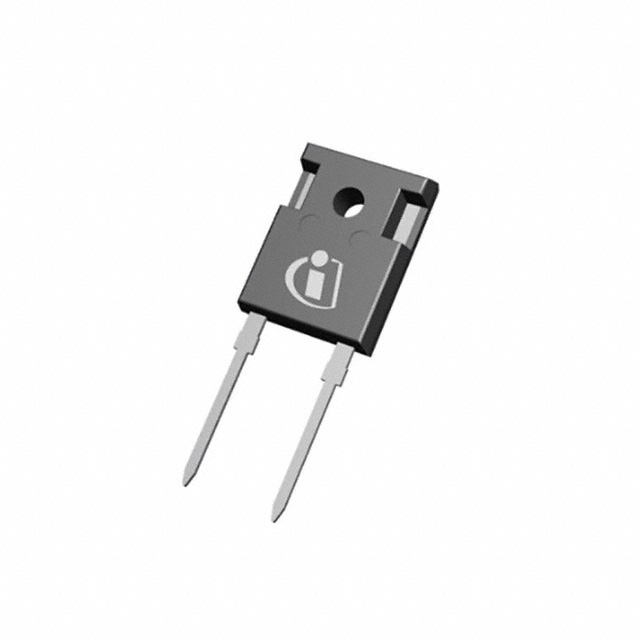

The diode is housed in a PG-TO247-2 package with pin 1 and backside as cathode and pin 2 as anode. It is Pb-free lead plating and RoHS compliant. Potential applications include industrial power supplies, industrial UPS, charging infrastructure, welding equipment, and solar inverters including central, string, and optimizer configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.91 | $13.91 |
| 10+ | $8.53 | $8.53 |
| 100+ | $7.15 | $7.15 |
| 480+ | $6.48 | $6.48 |
| 1,200+ | $6.41 | $6.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage rating is 1200V.
The maximum average rectified current is 87A.
The maximum forward voltage is 1.65V at a forward current of 30A.
The diode is available in a PG-TO247-2 package.
The maximum junction temperature is 175°C.
The charge stored during reverse recovery is 154nC.
