| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,005 pcs
|
2005 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Current | |
| Forward Voltage | |
| Lead Style | |
| Mounting Type | |
| Reverse Voltage |

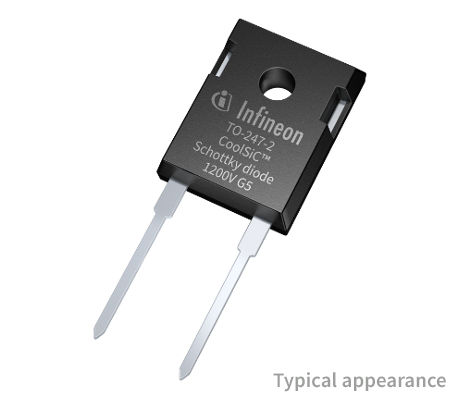

The Infineon IDWD20G120C5 is a 1200V CoolSiC™ Schottky diode, part of the G5 generation, utilizing .XT interconnection technology for enhanced thermal performance.
This diode features a high reverse voltage rating of 1200V and a nominal forward current of 20A. It is characterized by no reverse recovery current and no forward recovery, contributing to efficient operation. The device also boasts high surge current capability and temperature-independent switching behavior, making it reliable under varying conditions.
Designed for demanding applications, the IDWD20G120C5 is suitable for string inverters, online and industrial UPS systems, EV charging infrastructure, and welding equipment. Its construction includes Pb-free lead plating and is RoHS compliant.
The diode is housed in a PG-TO247-2-U01 package, designed for through-hole mounting. Product validation is confirmed for industrial applications according to relevant JEDEC standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1200 V
20 A nominal
Low (nominal)
No, there is no reverse recovery current.
PG-TO247-2-U01 through-hole package.
No, it is temperature independent.
High surge current capability.
