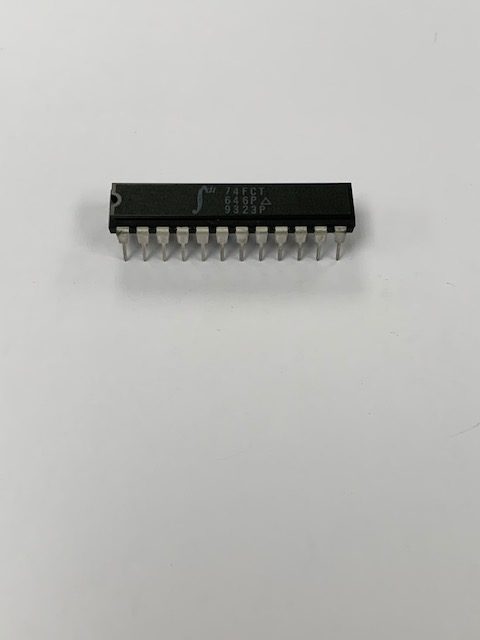

IDT74FCT646P The IDT74FCT646P is an octal transceiver/register from Integrated Device Technology. It features CMOS technology and operates at a nominal supply voltage of 5V.
Mfr Part #:

IDT74FCT646P

Available from 1 distributors
Mfr Name: Integrated Device Technology
Integrated Device Technology
The IDT74FCT646P is an octal transceiver/register from Integrated Device Technology. It features CMOS technology and operates at a nominal supply voltage of 5V.
✓ Total Stock: 25 pcs
$ Price Range: $0.38

IDT74FCT646P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IDT74FCT646P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
Mounting Style
Number of Pins
Supply Voltage
Technology
View Similar Products (0)

IDT74FCT646P Description

Short technical summary and product information.

The IDT74FCT646P is an octal transceiver and register manufactured by Integrated Device Technology. This component utilizes CMOS technology for its operations.



Key electrical specifications include a nominal positive supply voltage of 5.0V. The driver output low voltage (VOL Max) is 0.55V, and the driver output current (IOL) is 64mA. The maximum propagation delay (tPLH) is 9.0ns. Input threshold voltages are specified at 0.8V for the negative threshold and 2.0V for the positive threshold. Receiver output low voltage (VOL Max) is 0.55V, and receiver output high voltage (VOH Min) is 2.4V.



This device has a maximum operating temperature of 70°C. It is housed in a 24-pin DIP package and is designed for through-hole mounting.



Environmental compliance includes RoHS3 compliance, Moisture Sensitivity Level 1 (Unlimited), and REACH Unaffected status. However, these compliance details are unverified.

IDT74FCT646P Quick Information

Product Type: Octal Transceiver/Register
Canonical Name: IDT74FCT646P Octal Transceiver/Register
Subcategory: Buffers, Drivers, Receivers, Transceivers

IDT74FCT646P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IDT74FCT646P Estimated Pricing

Qty Low High
1+ $0.38 $0.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

IDT74FCT646P Features

  • CMOS technology for efficient operation.
  • Operates at a nominal 5V supply.
  • Features octal transceiver and register functions.
  • DIP package for through-hole mounting.
  • Maximum operating temperature of 70°C.

IDT74FCT646P Applications

  • Suitable for general logic interfacing.
  • Used in digital signal routing.
  • Ideal for data bus buffering.
  • Applicable in system expansion.

IDT74FCT646P FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage for the IDT74FCT646P?

The nominal positive supply voltage is 5.0V.

What is the maximum operating temperature for this transceiver?

The maximum operating temperature is 70°C.

What package type is the IDT74FCT646P available in?

It is available in a DIP package.

Does the IDT74FCT646P meet RoHS standards?

The RoHS Status is listed as RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1 Unlimited.
