IDT74FCT3807APYI

The IDT74FCT3807APYI is a 3.3V CMOS clock driver designed for efficient clock distribution. Built with advanced dual metal CMOS technology, it provides a 1:10 fanout ratio, reducing loading on preceding drivers and creating an efficient clock distribution network.

This clock driver offers a guaranteed low skew of less than 350ps (max.) and very low duty cycle distortion of less than 350ps (max.). It boasts a high speed with a propagation delay of less than 3ns (max.) and a maximum output rise and fall time of less than 1.5ns. The device features low capacitance inputs with hysteresis for improved noise margins and multiple power and ground pins to reduce noise.

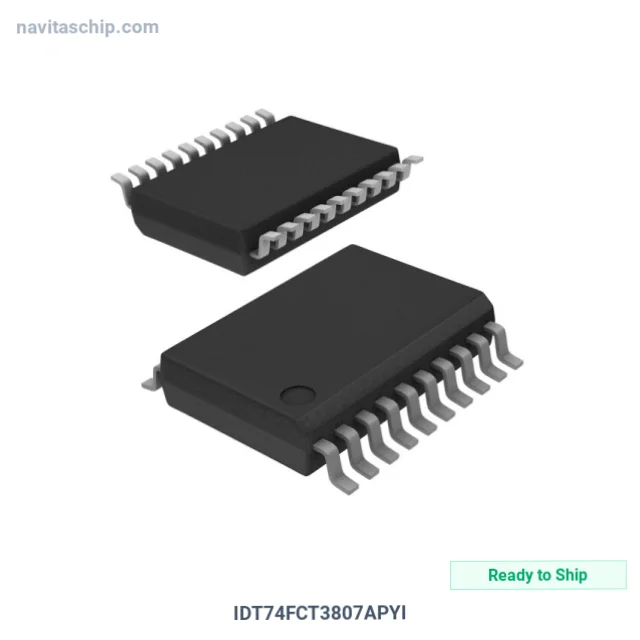

The IDT74FCT3807APYI operates with a supply voltage of 3.3V ± 0.3V and can accept inputs driven from 3.3V or 5V components. It is available in a 20-SSOP surface mount package and operates within a temperature range of -40°C to 85°C. Typical applications include clock and signal distribution.

Key electrical characteristics include a maximum frequency of 100 MHz and a typical input capacitance of 4.5pF. The device is designed for low CMOS power consumption while maintaining TTL compatible inputs and outputs.
