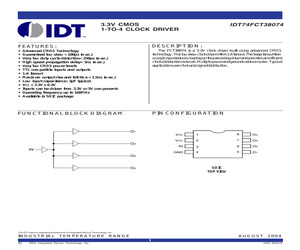

IDT74FCT38074DCGI8 The Integrated Device Technology IDT74FCT38074DCGI8 is a 3.3V CMOS clock buffer/driver with a 1:4 output ratio. It operates up to 166MHz and comes in an 8-SOIC package.
Mfr Part #:

IDT74FCT38074DCGI8

Available from 2 distributors
Mfr Name: Integrated Device Technology
Integrated Device Technology
The Integrated Device Technology IDT74FCT38074DCGI8 is a 3.3V CMOS clock buffer/driver with a 1:4 output ratio. It operates up to 166MHz and comes in an 8-SOIC package.
✓ Total Stock: 3,703 pcs
$ Price Range: $3.00

IDT74FCT38074DCGI8 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request 1114+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,703 pcs
On Request
1703 pcs On Request 1 On Request On Request 1303+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IDT74FCT38074DCGI8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Input Type
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Propagation Delay
SVHC Present
Voltage Supply
View Similar Products (0)

IDT74FCT38074DCGI8 Description

Short technical summary and product information.

The IDT74FCT38074DCGI8 from Integrated Device Technology is a high-performance clock buffer and driver designed for 3.3V systems. This component features a 1:4 input to output ratio, providing four true outputs to distribute clock signals efficiently.



With a maximum operating frequency of 166MHz and a propagation delay of 3 ns, the IDT74FCT38074DCGI8 is suitable for various timing applications. It offers a low same-edge skew of 0.1000 ns, ensuring signal integrity. The device operates within a supply voltage range of 3V to 3.6V and is specified for industrial temperature grades, from -40°C to 85°C.



The clock buffer is housed in an 8-SOIC package, designed for surface mounting. It utilizes LVTTL input logic and has a plastic/epoxy package body material with matte tin terminal finish and gull wing terminal form. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

IDT74FCT38074DCGI8 Quick Information

Product Type: Clock Buffer/Driver
Series: 74FCT
Canonical Name: Integrated Device Technology IDT74FCT38074DCGI8 Clock Buffer/Driver
Subcategory: Clock Buffers, Drivers

IDT74FCT38074DCGI8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IDT74FCT38074DCGI8 Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

IDT74FCT38074DCGI8 Features

  • 3.3V CMOS 1-to-4 clock driver
  • 166MHz maximum operating frequency
  • 3 ns propagation delay
  • 0.1 ns same edge skew
  • 8-SOIC surface mount package

IDT74FCT38074DCGI8 Applications

  • Clock signal distribution
  • Timing signal buffering
  • Digital system synchronization
  • Low skew clocking applications

IDT74FCT38074DCGI8 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the IDT74FCT38074DCGI8?

The supply voltage range is 3 V to 3.6 V, with a typical operating value of 3.3 V.

What is the maximum clock frequency supported by this device?

The maximum clock frequency is 166 MHz.

What is the propagation delay of the IDT74FCT38074DCGI8?

The propagation delay is 3 ns.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What package is available for the IDT74FCT38074DCGI8?

The device is available in an 8-pin SOIC package with surface-mount gull-wing leads.

How many outputs does the fanout buffer provide?

It provides 4 true outputs with a 1:4 input-to-output ratio.

What input logic type does the device support?

The device accepts LVTTL input signals.
