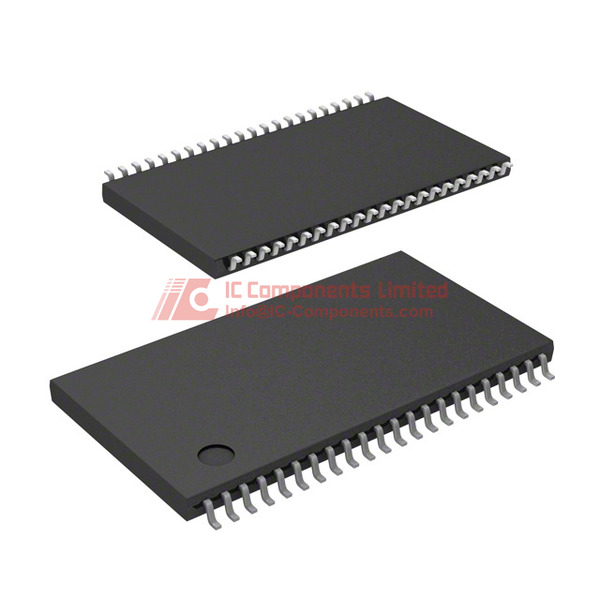

IDT71V416S10PHI The IDT71V416S10PHI is a 4 Megabit (256K x 16) high-speed CMOS Static RAM from Integrated Device Technology. It features a 10ns access time and operates from a single 3.3V supply.
Mfr Part #:

IDT71V416S10PHI

Available from 1 distributors
Mfr Name: Integrated Device Technology
Integrated Device Technology
The IDT71V416S10PHI is a 4 Megabit (256K x 16) high-speed CMOS Static RAM from Integrated Device Technology. It features a 10ns access time and operates from a single 3.3V supply.
✓ Total Stock: 2,001 pcs

IDT71V416S10PHI Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,001 pcs
On Request
2001 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IDT71V416S10PHI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Capacitance
Interface
Lead Spacing
Memory Size
Memory Type
Mounting Type
Package / Case
SVHC Present
Voltage Supply
View Similar Products (0)

IDT71V416S10PHI Description

Short technical summary and product information.

The IDT71V416S10PHI is a 4,194,304-bit (256K x 16) high-speed CMOS Static RAM manufactured by Integrated Device Technology. Fabricated using advanced, high-performance CMOS technology, this memory component offers a cost-effective solution for high-speed memory requirements.



Key electrical specifications include an address access time as fast as 10ns and an output enable time of 5ns. It operates from a single 3.3V power supply and features LVTTL-compatible bidirectional data inputs and outputs. The device utilizes fully static asynchronous circuitry, eliminating the need for clocks or refresh cycles.



This Static RAM is available in multiple package options: a 44-pin, 400 mil plastic SOJ, a 44-pin, 400 mil TSOP Type II, and a 48-ball grid array measuring 9mm x 9mm. The JEDEC Center Power / GND pinout is utilized for reduced noise. Low power consumption is achieved via chip deselect functionality.



The IDT71V416S10PHI is suitable for applications requiring fast memory access and reliable static operation. Its organization and speed make it a versatile component for various embedded systems and data processing tasks.

IDT71V416S10PHI Quick Information

Product Type: Static RAM
Series: IDT71V416
Canonical Name: IDT71V416S10PHI 4 Megabit (256K x 16-Bit) 10ns 3.3V LVTTL-compatible Static RAM
Subcategory: Memory

IDT71V416S10PHI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IDT71V416S10PHI Features

  • 256K x 16 advanced high-speed CMOS Static RAM
  • 10ns maximum address access time
  • Single 3.3V power supply
  • LVTTL-compatible bidirectional data I/O
  • Available in SOJ, TSOP II, and BGA packages

IDT71V416S10PHI Applications

  • High-speed data buffering
  • Embedded system memory
  • Digital signal processing
  • Consumer electronics applications

IDT71V416S10PHI FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the IDT71V416S10PHI?

Single 3.3V power supply.

What are the available package options?

44-pin SOJ, 44-pin TSOP Type II, or 48-ball BGA surface mount packages.

What is the memory organization and size?

256K x 16 (4 Megabit).

What is the access time?

10 ns maximum (for this speed grade).

What is the interface type?

LVTTL-compatible.

What are the input and output capacitance values?

Input capacitance 7 pF, I/O capacitance 8 pF.
