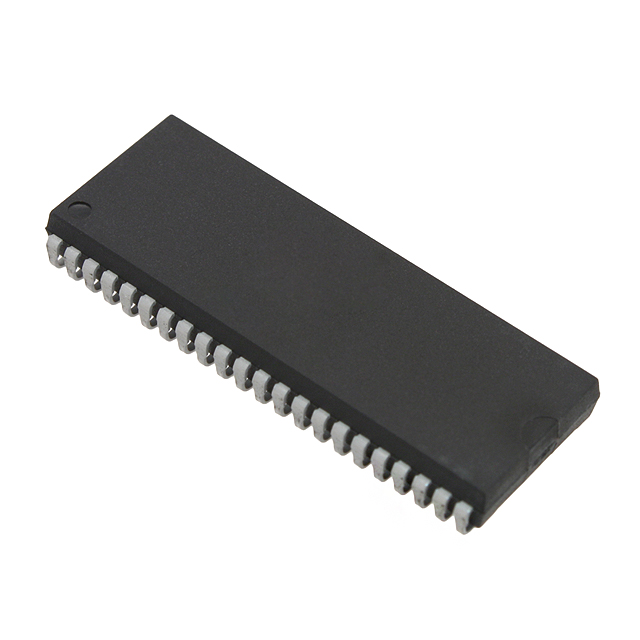

IDT71016S20Y The IDT71016S20Y is a 1Mbit CMOS Static RAM from Integrated Device Technology. It features a 20ns access time and operates from a 5V supply.
Mfr Part #:

IDT71016S20Y

Available from 3 distributors
Mfr Name: Integrated Device Technology
Integrated Device Technology
The IDT71016S20Y is a 1Mbit CMOS Static RAM from Integrated Device Technology. It features a 20ns access time and operates from a 5V supply.
✓ Total Stock: 1,015 pcs
$ Price Range: $1.28

IDT71016S20Y Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request 0135+ On Request On Request
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 0018G/ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IDT71016S20Y Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Interface
Memory Organization
Memory Size
Mounting Type
Operating Temperature
Operating Voltage
Technology
Write Cycle Time
View Similar Products (0)

IDT71016S20Y Description

Short technical summary and product information.

The IDT71016S20Y is a high-speed CMOS Static RAM with a memory organization of 64K x 16 bits, totaling 1Mbit of storage. Fabricated using advanced CMOS technology, it offers cost-effective solutions for high-speed memory requirements. This asynchronous SRAM operates from a single 5V supply and requires no clocks or refresh cycles.



Key electrical specifications include an address access time as fast as 12ns and an output enable time of 7ns. The part is available with access times of 12ns, 15ns, and 20ns. Data inputs and outputs are directly TTL-compatible.



The IDT71016S20Y is available in a 44-pin Plastic SOJ package and a 44-pin TSOP Type II package. It is designed for surface mounting.



This component is suitable for applications requiring fast memory access and reliable data storage.

IDT71016S20Y Quick Information

Product Type: CMOS Static RAM
Series: IDT71016
Canonical Name: IDT71016S20Y CMOS Static RAM
Subcategory: Memory

IDT71016S20Y Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IDT71016S20Y Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

IDT71016S20Y Features

  • 1Mbit CMOS Static RAM
  • 64K x 16 memory organization
  • Access times as fast as 12ns
  • Single 5V power supply
  • 44-pin SOJ or TSOP package

IDT71016S20Y Applications

  • High-speed data storage
  • Memory buffering applications
  • Embedded system memory
  • Industrial control systems

IDT71016S20Y FAQs

5 frequently asked questions generated from this part’s specifications.
What is the memory size of the IDT71016S20Y?

The IDT71016S20Y has a memory size of 1Mbit.

What is the access time for the IDT71016S20Y?

The address access time is as fast as 12ns, and the output enable time is as fast as 7ns. The manufacturer page lists a maximum access time of 20ns.

What operating voltage does the IDT71016S20Y require?

The IDT71016S20Y operates from a single 5V supply, with a specified range of 4.5V to 5.5V.

What is the operating temperature range for this SRAM?

The operating temperature range for the IDT71016S20Y is 0°C to 70°C.

What package is the IDT71016S20Y available in?

The IDT71016S20Y is available in a 44-pin SOJ or a 44-BSOJ package, designed for surface mounting.
