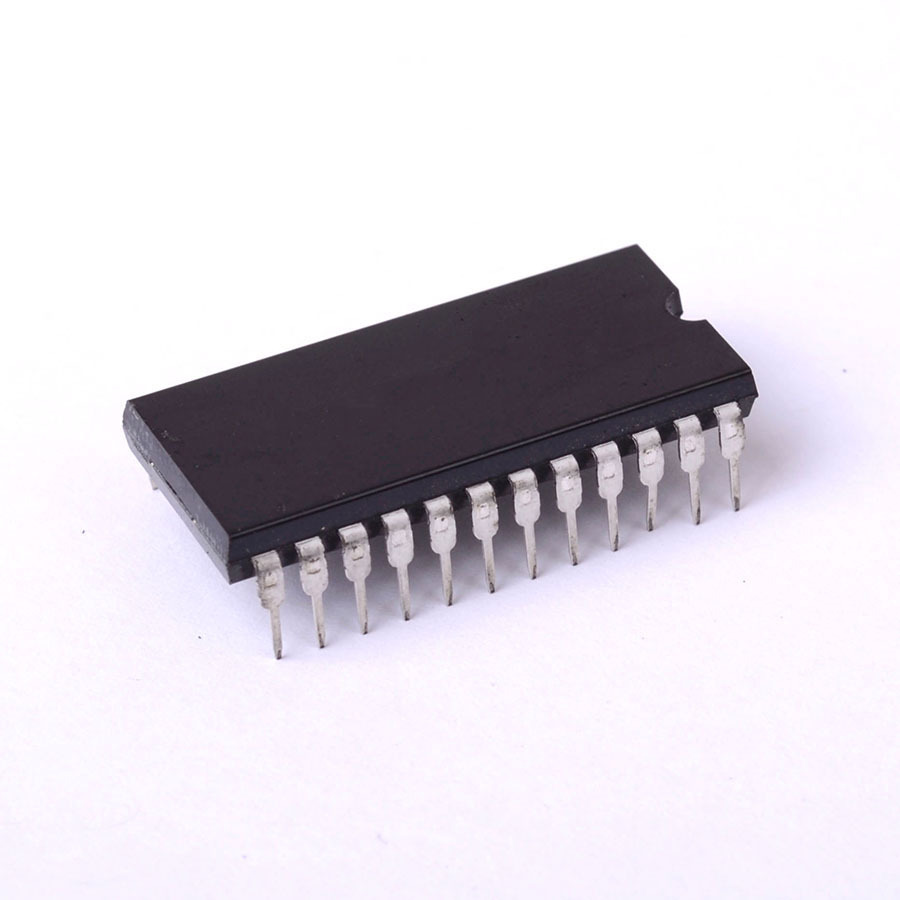

IDT6116LA90DB The IDT6116LA90DB is a CMOS integrated circuit from Integrated Device Technology, functioning as a memory component. It offers 2k words with an 8-bit word size and a 90ns maximum access time.
Mfr Part #:

IDT6116LA90DB

Available from 2 distributors
Mfr Name: Integrated Device Technology
Integrated Device Technology
The IDT6116LA90DB is a CMOS integrated circuit from Integrated Device Technology, functioning as a memory component. It offers 2k words with an 8-bit word size and a 90ns maximum access time.
✓ Total Stock: 109 pcs
$ Price Range: $1.28

IDT6116LA90DB Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
74 pcs
On Request
74 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
35 pcs
On Request
35 pcs On Request 1 On Request On Request 9643 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IDT6116LA90DB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Lead Spacing
Lead Style
Mounting Type
Number of Pins
Operating Temperature
Technology
View Similar Products (0)

IDT6116LA90DB Description

Short technical summary and product information.

This Integrated Device Technology IDT6116LA90DB is a CMOS memory integrated circuit. It is organized as 2k words, with each word being 8 bits wide. The component features a maximum access time of 90ns and a write pulse width of 90ns.



Packaged in a DIP24 case, this IC is designed for through-hole mounting. It operates within a temperature range of -55°C to 125°C. The output configuration is 3-State, and it has a maximum power dissipation of 1.0W.



This memory IC is suitable for various electronic applications requiring reliable data storage and retrieval. Its specifications make it a component for systems needing specific memory access speeds and operating conditions.

IDT6116LA90DB Quick Information

Product Type: Integrated Circuit
Series: IDT6116
Canonical Name: IDT6116LA90DB Integrated Circuit
Subcategory: SRAM

IDT6116LA90DB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IDT6116LA90DB Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

IDT6116LA90DB Features

  • 2k words, 8 bits per word memory.
  • 90ns maximum access time.
  • CMOS technology for low power.
  • DIP24 package for through-hole mounting.
  • Wide operating temperature range.

IDT6116LA90DB Applications

  • General purpose memory applications.
  • Embedded system data storage.
  • Control system memory needs.
  • Industrial equipment memory.

IDT6116LA90DB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the memory organization of the IDT6116LA90DB?

It is organized as 2,048 words by 8 bits (2k x 8).

What is the access time of this SRAM?

The maximum access time is 90 ns.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What is the package type?

The device is available in a 24-pin DIP (Dual In-line Package) with through-hole mounting.

What is the output configuration?

The outputs are 3-State.

What is the maximum power dissipation?

Maximum power dissipation is 1.0 W.

What is the minimum write pulse width?

The minimum write pulse width is 90 ns.
