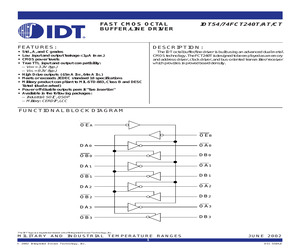

IDT54FCT240TDB The IDT54FCT240TDB is a dual 4-bit driver from Integrated Device Technology. It operates at a nominal supply voltage of 5V and features an inverted output.
Mfr Part #:

IDT54FCT240TDB

Available from 1 distributors
Mfr Name: Integrated Device Technology
Integrated Device Technology
The IDT54FCT240TDB is a dual 4-bit driver from Integrated Device Technology. It operates at a nominal supply voltage of 5V and features an inverted output.
✓ Total Stock: 1 pcs
$ Price Range: $13.55

IDT54FCT240TDB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IDT54FCT240TDB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of Bits
Operating Temperature
Propagation Delay
Storage Temperature
Tape & Reel
Technology
Voltage
View Similar Products (0)

IDT54FCT240TDB Description

Short technical summary and product information.

The Integrated Device Technology IDT54FCT240TDB is a dual 4-bit driver IC designed for logic applications. It operates with a nominal supply voltage of 5V and has an inverted output polarity.



Key electrical characteristics include a maximum propagation delay of 9 ns and a maximum low-level output voltage of 0.55V at 48mA. The device is specified for a wide operating temperature range from -55°C to 125°C, indicating suitability for military applications.



Packaged in a CDIP20 format, this component features through-hole mounting and a ceramic, glass-sealed body. The terminal finish is tin-lead with a pitch of 2.54 mm. The IDT54FCT240TDB is part of the FCT SERIES and is classified as a CMOS logic driver.

IDT54FCT240TDB Quick Information

Product Type: Dual 4-Bit Driver
Series: FCT SERIES
Canonical Name: Integrated Device Technology IDT54FCT240TDB Dual 4-Bit Driver, Inverted Output
Subcategory: Driver

IDT54FCT240TDB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IDT54FCT240TDB Estimated Pricing

Qty Low High
1+ $13.55 $13.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

IDT54FCT240TDB Features

  • Dual 4-bit driver IC.
  • Operates at a 5V nominal supply voltage.
  • Features inverted output polarity.
  • Maximum propagation delay of 9 ns.
  • Military temperature grade range.

IDT54FCT240TDB Applications

  • Suitable for logic signal routing.
  • Used in systems requiring 4-bit drivers.
  • Ideal for military temperature applications.
  • Component for through-hole PCB assemblies.

IDT54FCT240TDB FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage for the IDT54FCT240TDB?

The nominal supply voltage for the IDT54FCT240TDB is 5V.

What is the maximum propagation delay of the IDT54FCT240TDB?

The maximum propagation delay (tpd) for the IDT54FCT240TDB is 9 ns.

What is the operating temperature range for this driver?

The IDT54FCT240TDB operates from -55°C to 125°C.

What type of package is the IDT54FCT240TDB in?

The IDT54FCT240TDB is supplied in a CDIP20 package.

Does the IDT54FCT240TDB have an inverted output?

Yes, the IDT54FCT240TDB features an inverted output polarity.
