| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Test Frequency | |
| Tolerance | |
| Type | |
| Width |

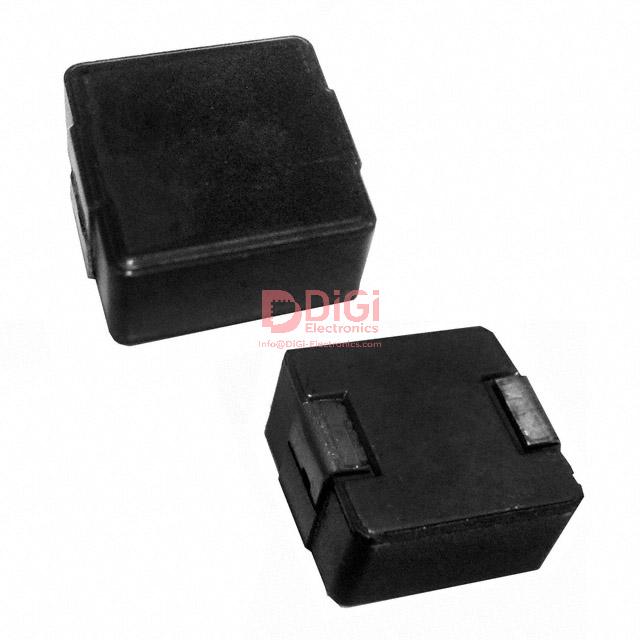

This Vishay Dale IDC5020ER101M is an unshielded, surface mount fixed inductor from the IDC-5020 series. It offers a nominal inductance of 100 µH with a tolerance of ±20% and a current rating of 1.3 A. The inductor is constructed with a ferrite core and enamelled copper wire, providing high energy storage and low resistance.
The mechanical specifications include a length of 12.95mm, width of 9.40mm, and height of 5.21mm. It operates within a temperature range of -40°C to +125°C and is designed for resistance to solder heat up to 260°C for 10 seconds. The component is suitable for automatic handling due to its tape and reel packaging.
This component is ideal for applications requiring stable inductance and current handling capabilities in a compact surface-mount form factor. Its construction makes it suitable for various electronic circuits where efficient energy storage is necessary.
The inductance is 100 µH.
The tolerance is ±20%.
The maximum DC resistance is 280mΩ.
The current rating is 1.3 A.
The operating temperature range is -40°C to 125°C.
It uses a ferrite core.
No, it is unshielded.
