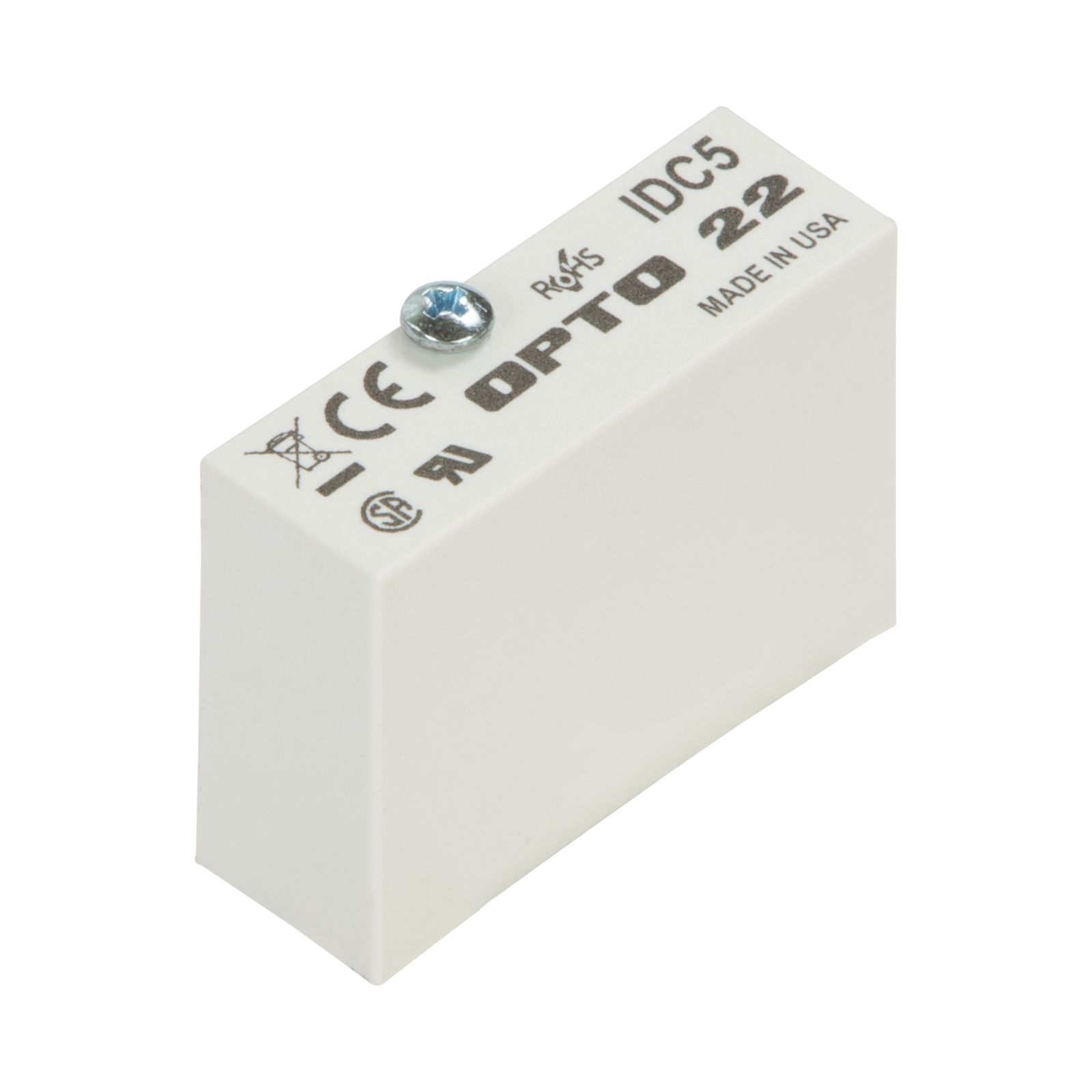

IDC5 The Opto 22 IDC5 is a digital input module designed for sensing ON/OFF voltage levels. It features 4000 volts of optical isolation and accepts a wide input voltage range.
Mfr Part #:

IDC5

Available from 1 distributors
Mfr Name: Opto 22
Opto 22
The Opto 22 IDC5 is a digital input module designed for sensing ON/OFF voltage levels. It features 4000 volts of optical isolation and accepts a wide input voltage range.
✓ Total Stock: 8 pcs
$ Price Range: $32.00

IDC5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IDC5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
Output Current
Storage Temperature
Tape & Reel
Turn Off Time
Turn On Time
View Similar Products (0)

IDC5 Description

Short technical summary and product information.

The Opto 22 IDC5 is a versatile digital input module used for sensing ON/OFF voltage levels in various applications. It provides up to 4000 volts of transient optical isolation between field inputs and the output circuit, ensuring robust performance.



This module accepts a wide input voltage range, specified as 10-32 VDC or 12-32 VAC, and operates with a 5 VDC logic. Key electrical specifications include a typical output voltage drop of 0.4 V at 50 mA, a maximum output current of 50 mA, and a turn-on time of 5 msec.



The IDC5 operates within an ambient temperature range of -30 to 70 °C. Typical uses include sensing voltage presence or absence from sources like proximity switches, limit switches, selector switches, push buttons, photoelectric switches, and TTL-compatible devices. Its rugged construction makes it suitable for demanding industrial environments.

IDC5 Quick Information

Product Type: Digital Input Module
Canonical Name: Opto 22 IDC5 Digital Input Module
Subcategory: Digital Isolators

IDC5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IDC5 Estimated Pricing

Qty Low High
1+ $32.00 $32.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

IDC5 Features

  • 4000 volts transient optical isolation.
  • Accepts 10-32 VDC or 12-32 VAC input.
  • Operates with 5 VDC logic.
  • Wide -30 to 70 °C operating temperature.
  • Suitable for sensing voltage levels.

IDC5 Applications

  • Sensing proximity switch closures.
  • Monitoring limit switch status.
  • Detecting selector switch positions.
  • Interfacing with push buttons.
  • Reading photoelectric switch signals.

IDC5 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the input-to-output isolation voltage of the IDC5?

The IDC5 provides an isolation voltage of 4000 V for transient conditions.

What is the typical output voltage drop of the IDC5?

The typical output voltage drop is 0.4 V at 50 mA.

What is the operating ambient temperature range for the IDC5?

-30°C to 70°C.

What input voltages does the IDC5 support?

It supports input voltages from 10 to 32 VDC and 12 to 32 VAC.

What is the output supply voltage range for the IDC5?

The output supply voltage ranges from 4.5 to 6 VDC, with a nominal of 5 VDC.
