| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,180 pcs
|
4180 pcs | On Request | 1 | On Request | On Request | 0524+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duty Cycle | |
| Number of Circuits | |
| PLL | |
| Programmable | |
| Tape & Reel | |
| Voltage |
The Renesas Electronics Corporation ICS501MT, part of the LOCO™ series, is a cost-effective PLL clock multiplier designed to replace crystal oscillators. It generates high-frequency clock outputs from lower frequency crystal or clock inputs, supporting output frequencies up to 160 MHz.
Key electrical specifications include an input crystal frequency range of 5-27 MHz and an input clock frequency range of 2-50 MHz. The device operates at 3.3V or 5.0V and offers a duty cycle of 45/55 up to 160 MHz. It features extremely low jitter of 25 ps (one sigma) and a drive capability of 25 mA at TTL levels.

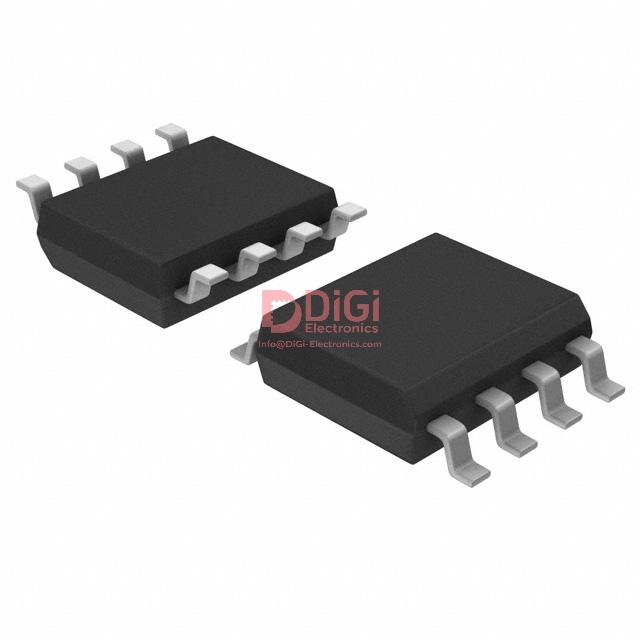

This clock generator IC is available in an 8-SOIC package. It is ideal for applications requiring a reliable and low-cost clock source, such as replacing traditional crystal oscillators in various electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.22 | $2.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input crystal frequency range is 5 to 27 MHz.
The maximum output clock frequency is up to 160 MHz.
The jitter is 25 ps (one sigma).
The package type is 8-SOIC.
It operates at 3.3 V or 5.0 V.
