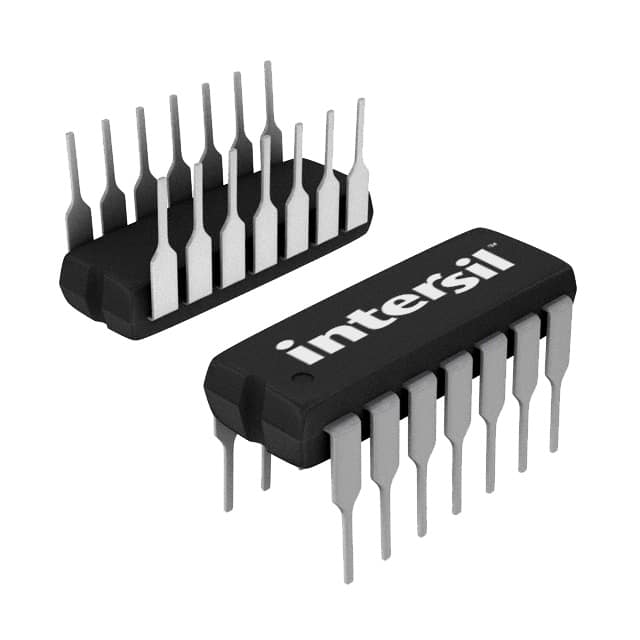

ICM7556MJD The Renesas ICM7556MJD is a dual 555-type timer and oscillator IC operating at up to 1MHz. It supports a wide supply voltage range and is housed in a through-hole package.
Mfr Part #:

ICM7556MJD

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas ICM7556MJD is a dual 555-type timer and oscillator IC operating at up to 1MHz. It supports a wide supply voltage range and is housed in a through-hole package.
✓ Total Stock: 4,500 pcs

ICM7556MJD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ICM7556MJD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Lead Spacing
Mounting Type
Operating Temperature
Supplier Device Package
Type
Voltage
View Similar Products (0)

ICM7556MJD Description

Short technical summary and product information.

The Renesas ICM7556MJD is a versatile dual timer and oscillator integrated circuit based on the 555 timer architecture. It operates at frequencies up to 1MHz, making it suitable for a variety of timing and oscillation applications.



This IC supports a broad operating voltage range from 2V to 18V and can function across an extended temperature range of -55°C to 125°C. The ICM7556MJD is designed for through-hole mounting and comes in a 14-CDIP package.



Key electrical characteristics include a supply current of 120 µA. Its robust design and wide operating parameters make it a reliable choice for industrial and commercial timing circuits.

ICM7556MJD Quick Information

Product Type: Timer IC
Canonical Name: Renesas ICM7556MJD Dual Timer/Oscillator IC
Subcategory: Programmable Timers and Oscillators

ICM7556MJD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ICM7556MJD Features

  • Dual 555-type timer and oscillator.
  • Operates at frequencies up to 1MHz.
  • Wide 2V to 18V supply voltage range.
  • Extended -55°C to 125°C operating temperature.
  • Through-hole 14-CDIP package.

ICM7556MJD Applications

  • Ideal for pulse generation circuits.
  • Suitable for timing applications.
  • Used in oscillator circuits.
  • General purpose timing needs.

ICM7556MJD FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the ICM7556MJD?

The ICM7556MJD operates from 2V to 18V.

What is the operating temperature range for the ICM7556MJD?

The operating temperature range is -55°C to 125°C.

What type of package is the ICM7556MJD in?

The ICM7556MJD is supplied in a 14-CDIP (0.300", 7.62mm) package.

Is the ICM7556MJD RoHS compliant?

Yes, this part is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the ICM7556MJD?

The Moisture Sensitivity Level is 1 Unlimited.
