ICM7556IPD The Intersil ICM7556IPD is a dual timer IC with a frequency of 1MHz. It operates within a voltage range of 2V to 18V and has a low supply current of 120µA.
Mfr Part #:

ICM7556IPD

Available from 1 distributors
Mfr Name: Intersil
Intersil
The Intersil ICM7556IPD is a dual timer IC with a frequency of 1MHz. It operates within a voltage range of 2V to 18V and has a low supply current of 120µA.
✓ Total Stock: 15 pcs

ICM7556IPD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Spartce Electronics. ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ICM7556IPD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Mounting Type
Operating Temperature
Supplier Device Package
Type
Voltage
View Similar Products (0)

ICM7556IPD Description

Short technical summary and product information.

The ICM7556IPD from Intersil is a dual timer IC, also known as a 555 type timer/oscillator. It is designed for general-purpose RC timing applications.



This component operates at a frequency of 1MHz and supports a wide supply voltage range from 2V to 18V. Its low operating current is 120µA, making it suitable for power-sensitive designs. The operating temperature range is -25°C to 85°C.

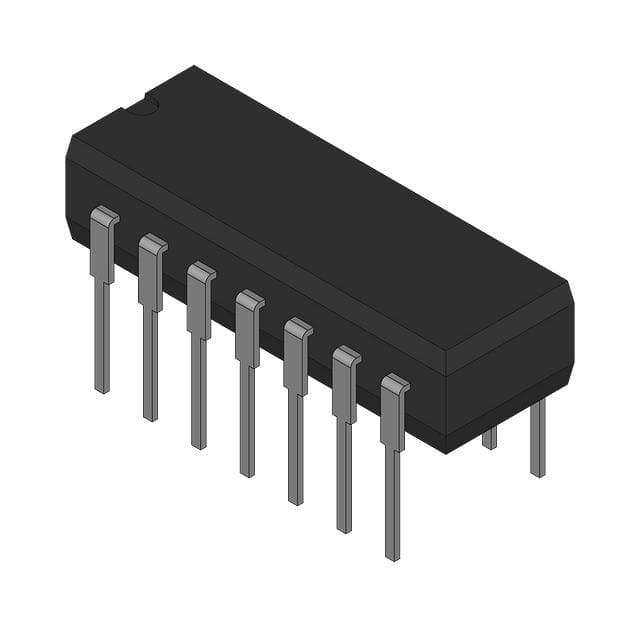

The ICM7556IPD is packaged in a 14-PDIP through-hole configuration, with the case dimensions being 14-DIP (0.300", 7.62mm). This mounting type is suitable for breadboarding and through-hole PCB assembly.



This timer IC is RoHS3 compliant, REACH unaffected, and has a Moisture Sensitivity Level (MSL) of 1.

ICM7556IPD Quick Information

Product Type: Timer IC
Canonical Name: ICM7556IPD Dual Timer/Oscillator IC
Subcategory: Programmable Timers and Oscillators

ICM7556IPD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ICM7556IPD Features

  • Dual timer/oscillator IC.
  • Operates at 1MHz frequency.
  • Wide 2V to 18V supply voltage.
  • Low 120µA supply current.
  • Through-hole mounting package.

ICM7556IPD Applications

  • General purpose timing circuits.
  • Oscillator applications.
  • Pulse generation.
  • RC circuit timing.

ICM7556IPD FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the ICM7556IPD?

The operating voltage range for the ICM7556IPD is 2V to 18V.

What is the operating temperature range of the ICM7556IPD?

The ICM7556IPD operates within a temperature range of -25°C to 85°C.

What package type is the ICM7556IPD supplied in?

The ICM7556IPD is supplied in a 14-PDIP package for through-hole mounting.

Is the ICM7556IPD RoHS compliant?

The ICM7556IPD is RoHS3 Compliant.
