ICM7228AIPI
Intersil
The Intersil ICM7228AIPI is an LED Display Driver IC designed to drive 8 digits with 64 segments. It operates within a voltage range of 4V to 6V.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,898 pcs
|
6898 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Digits or Characters | |
| Display Type | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Voltage |

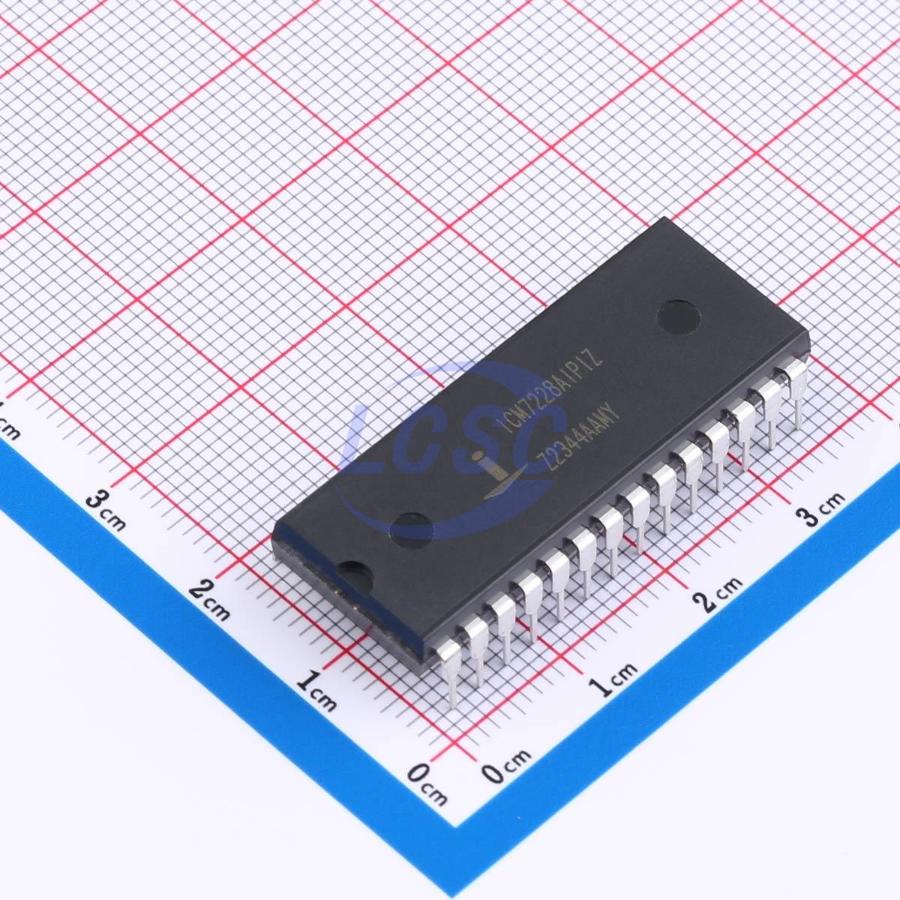

The Renesas ICM7228AIPIZ is an integrated circuit designed for driving 7-segment LED displays. This component features an 8-digit configuration, making it suitable for applications requiring the display of numerical information.
Key electrical characteristics include an operating voltage range of 4V to 6V and a low current consumption of 200 µA. The device is designed for through-hole mounting and comes in a 28-PDIP package, specifically a 28-DIP (0.600", 15.24mm) case.
With its specific configuration for 7-segment displays and an 8-digit capacity, the ICM7228AIPIZ is well-suited for various instrumentation and display applications where clear numerical output is essential. The through-hole mounting type facilitates integration into traditional PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4V to 6V.
The operating temperature range is -40°C to 85°C.
It is available in a 28-DIP (0.600", 15.24mm) package, also known as 28-PDIP.
It drives 8 digits of 7-segment LED display.
The typical current consumption is 200 µA.
