| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Display Type | |
| Interface | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

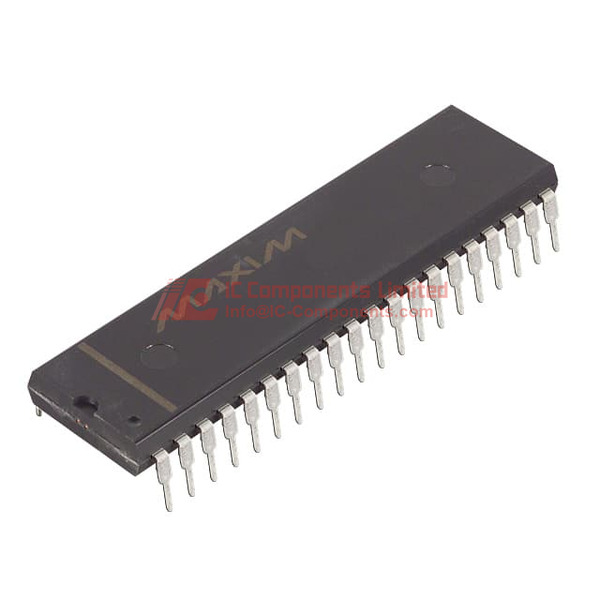

The ICM7211AIPL is a 4-digit LCD display driver IC manufactured by Analog Devices Inc./Maxim Integrated. It is designed to interface with LCD displays, providing the necessary drive signals for 7-segment configurations.
This component operates within a supply voltage range of 3V to 6V and draws a minimal quiescent current of 10µA, making it suitable for low-power applications. The operating temperature range is from -20°C to 85°C, ensuring reliable performance in various environmental conditions.
The ICM7211AIPL features a BCD interface and is housed in a 40-PDIP package, designed for through-hole mounting. Its primary function is to decode binary-coded decimal inputs and drive a 4-digit LCD display.
This device is suitable for applications requiring simple and efficient LCD display control, such as instrumentation, portable devices, and control panels where clear numerical readouts are essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3V to 6V.
The quiescent current is 10µA.
The operating temperature range is -20°C to 85°C.
It can drive 4 digits.
It supports LCD displays.
The package type is 40-PDIP.
The mounting type is Through Hole.
