| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight |

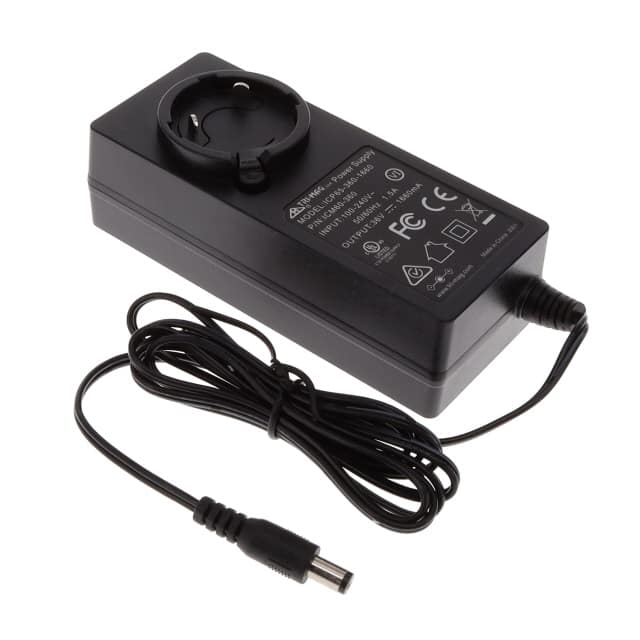

The ICM60-360 from Tri-Mag, LLC is a versatile 65W AC/DC external wall mount adapter, designed for ITE (Commercial) applications. It provides a stable 36V output at a maximum current of 1.8A.
This adapter features a universal input voltage range of 90-264 VAC and meets the stringent Level VI efficiency standard, ensuring optimal energy performance. The input connector is a NEMA 1-15P, with options for multi-blade configurations sold separately. The output is delivered via a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization.
Constructed for reliability, the ICM60-360 operates within a temperature range of 0°C to 40°C. Its compact dimensions (117.3mm x 54.4mm x 35.6mm) and wall-mount Class II form factor make it suitable for various integration needs. The unit complies with international standards, including IEC 62368-1, and carries cUL, FCC, and UL agency approvals.
The ICM60-360 adapter has an output voltage of 36V.
The maximum output current for the ICM60-360 is 1.8A.
The ICM60-360 adapter has a power rating of 65W.
The ICM60-360 meets Level VI efficiency.
The operating temperature range for the ICM60-360 is 0°C to 40°C.
The ICM60-360 uses a barrel plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
The dimensions of the ICM60-360 are 117.3mm L x 54.4mm W x 35.6mm H.
