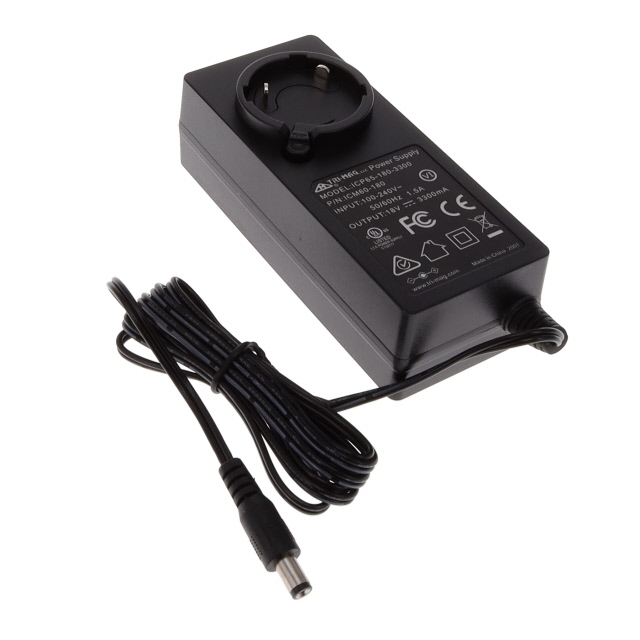

ICM60-180 The Tri-Mag, LLC ICM60-180 is a 59W AC/DC wall mount adapter providing 18V output. It features Level VI efficiency and a NEMA 1-15P input connector.
Mfr Part #:

ICM60-180

Mfr Name: Tri-Mag, LLC
Tri-Mag, LLC
The Tri-Mag, LLC ICM60-180 is a 59W AC/DC wall mount adapter providing 18V output. It features Level VI efficiency and a NEMA 1-15P input connector.
Stock on Request

ICM60-180 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Input Connector
Input Type
Input Voltage
No Load Power Consumption
Operating Temperature
Output Connector
Output Current
Output Voltage
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Weight
View Similar Products (0)

ICM60-180 Description

Short technical summary and product information.

The ICM60-180 from Tri-Mag, LLC is an AC/DC external wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 18V output at a maximum current of 3.3A, with a total power rating of 59W. This adapter meets Efficiency Level VI standards, ensuring energy efficiency.



The unit features a NEMA 1-15P input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 9.5mm). Its compact dimensions are 117.3mm L x 54.4mm W x 35.6mm H, with a weight of 200.03g. The operating temperature range is from 0°C to 40°C.



Compliance is indicated by cUL, FCC, and UL approvals, and it adheres to the international standard 62368-1. The adapter is RoHS3 compliant and has a REACH Unaffected status. It is packaged in a box for distribution.

ICM60-180 Quick Information

Product Type: AC DC Desktop, Wall Adapter
Series: ICM60 (60W)
Canonical Name: ICM60-180 AC/DC WALL MOUNT ADAPTER
Subcategory: AC DC Desktop, Wall Adapters

ICM60-180 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ICM60-180 Features

  • 59W AC/DC wall mount adapter.
  • 18V output voltage at 3.3A.
  • Level VI energy efficiency.
  • NEMA 1-15P input connector.
  • 2.1mm barrel plug output connector.

ICM60-180 Applications

  • Ideal for commercial ITE equipment power.
  • Suitable for worldwide AC input use.
  • Used in point-of-sale and peripheral devices.
  • Powers networking and telecommunications gear.

ICM60-180 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the ICM60-180?

The input voltage range is 90 to 264 VAC.

What output voltage and current does the ICM60-180 provide?

It provides 18V at 3.3A with a maximum power of 59W.

What efficiency level does the ICM60-180 meet?

It meets Level VI efficiency standards.

What is the operating temperature range of the ICM60-180?

The operating temperature range is 0°C to 40°C.

What type of output connector does the ICM60-180 use?

It uses a barrel plug with 2.1mm I.D. and 5.5mm O.D.

What safety approvals does the ICM60-180 have?

It is approved by cUL, FCC, and UL.

What is the form factor of the ICM60-180?

It is a wall mount (Class II) adapter.
