| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

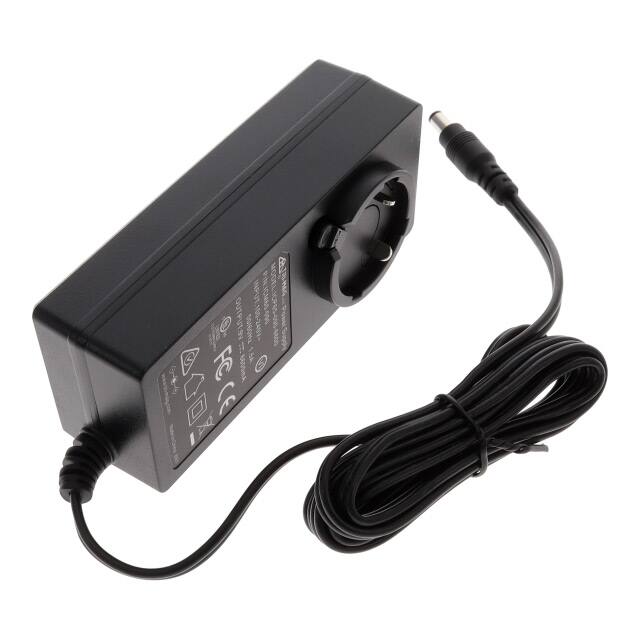

The Tri-Mag, LLC ICM60-090 is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 9V output with a current rating of 6A, providing a total power of 54W. This adapter is certified to meet Level VI efficiency standards, ensuring optimal energy consumption.
Designed for international use, the ICM60-090 features a fixed blade input connector, with multi-blade options sold separately. The output is a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. Its compact dimensions are 117.3mm x 54.4mm x 35.6mm, making it suitable for various installations. The operating temperature range is from 0°C to 40°C.
Compliance is assured with cUL, FCC, and UL agency approvals, and it adheres to the Standard Number 62368-1. The adapter operates with a maximum no-load power consumption of 100mW. It is classified as a Wall Mount (Class II) device.
The ICM60-090 adapter provides a 9V output voltage and a 6A current.
The ICM60-090 adapter has a power rating of 54W.
The ICM60-090 adapter meets Level VI efficiency standards.
The ICM60-090 adapter operates within a temperature range of 0°C to 40°C.
The ICM60-090 adapter uses a barrel plug with a 2.1mm I.D. x 5.5mm O.D. x 9.5mm size and positive center polarization.
The ICM60-090 adapter is approved by cUL, FCC, and UL.
The ICM60-090 adapter is RoHS3 Compliant.
