| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

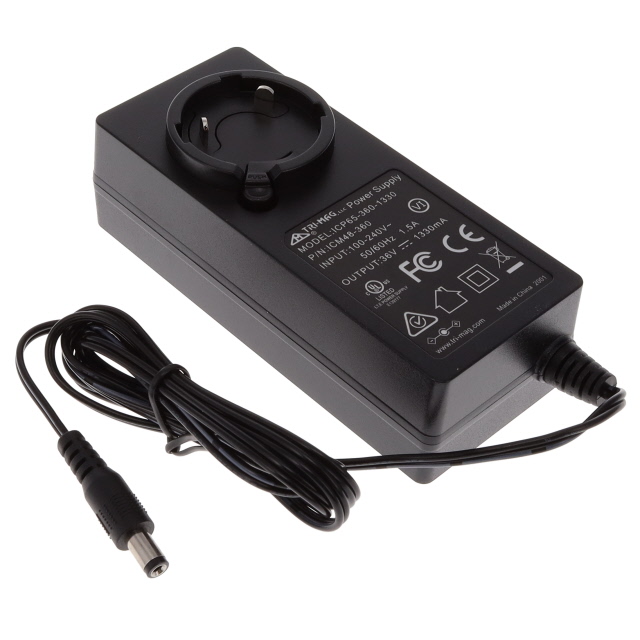

The Tri-Mag, LLC ICM48-360 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 36V output at a maximum current of 1.33A, providing a total power of 48W. This adapter meets DOE Level VI efficiency standards, ensuring energy-conscious operation.
Featuring a universal input voltage range of 90-264 VAC and a frequency of 47-63 Hz, the ICM48-360 is suitable for international use. It includes essential protections such as auto-recovery for overvoltage, overload, and short circuit conditions. The adapter is housed in a compact wall mount (Class II) form factor with dimensions of 97.0mm x 45.0mm x 34.5mm.
Connectivity is provided via a NEMA 1-15P input connector and a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output connector. The cord length is 1.50 meters. The operating temperature range is from 0°C to 40°C, and it operates within a humidity range of 5% to 95% RH non-condensing.
90-264 VAC.
Wall Mount (Class II).
0°C to 40°C.
36V DC at 1.33A.
Overvoltage, overload, and short circuit protection, all with auto recovery.
97.0mm x 45.0mm x 34.5mm (3.82" x 1.77" x 1.36").
Level VI.
