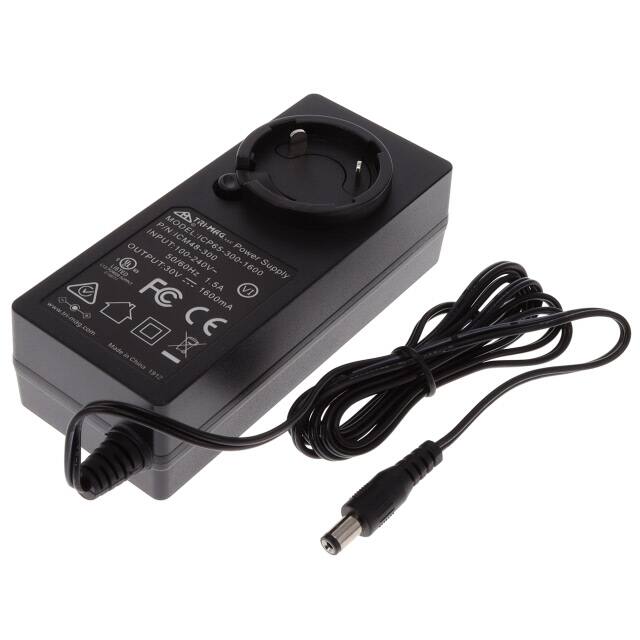

The Tri-Mag, LLC ICM48-300 is a versatile 48W AC/DC power supply designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90-264Vac and a frequency of 47-63Hz, making it suitable for international use.
This wall mount adapter delivers a stable 30V output current at 1.6A, with a maximum power rating of 48W. It boasts high efficiency, meeting the DOE Level VI standard, and features low no-load power consumption of 100mW maximum. For enhanced reliability and safety, the ICM48-300 includes auto-recovery protection against overvoltage, overload, and short circuits.
The unit is housed in a compact wall mount form factor (Class II) with dimensions of 97.0mm x 45.0mm x 34.5mm. It utilizes a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization and comes with a 59-inch (1.50m) cord. The input connection is a NEMA 1-15P, with multi-blade options available separately.
Designed for durability, the ICM48-300 has an insulation resistance of 50MΩ minimum and an MTBF of 50,000 hours at +25°C. It operates within a temperature range of 0°C to 40°C and humidity from 5% to 95% RH non-condensing.
90 to 264 Vac at 47 to 63 Hz.
30V DC at 1.6A (48W) with positive center polarity.
0°C to 40°C.
Wall mount (Class II) design measuring 97.0mm x 45.0mm x 34.5mm.
Auto-recovery overvoltage, overload, and short circuit protection.
Level VI efficiency with maximum no-load power consumption of 100mW.
cUL, FCC, and UL approvals per standard 60950-1 for ITE applications.
