| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

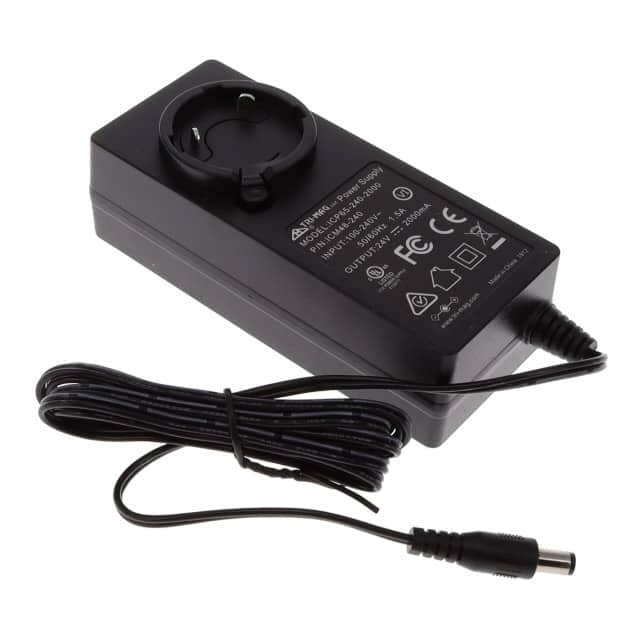

The Tri-Mag, LLC ICM48-240 is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 24V output with a maximum current of 2A, providing up to 48W of power.
This adapter features universal input voltage compatibility, accepting a range of 90 to 264 VAC at 47 to 63 Hz. It is designed with efficiency in mind, meeting the DOE Level VI standard. The unit offers essential protections including auto-recovery for overvoltage, overload, and short circuit conditions.
With a compact form factor and a cord length of 59 inches (1.50m), the ICM48-240 is suitable for various setups. The output connector is a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with a positive center pin. Approval agencies include cUL, FCC, and UL, ensuring compliance with safety standards.
Key specifications include a line regulation of ±1% and a load regulation of ±5%. The ripple and noise are kept to a maximum of 240mVp-p. Operating temperature ranges from 0°C to 40°C, and it has a minimum insulation resistance of 50MΩ. The MTBF is rated at 50,000 hours.
90-264 VAC
24V at 2A
Wall Mount (Class II)
97.0mm x 45.0mm x 34.5mm (L x W x H)
0°C to 40°C
Level VI
Overvoltage, overload, and short circuit protection with auto recovery.
