| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

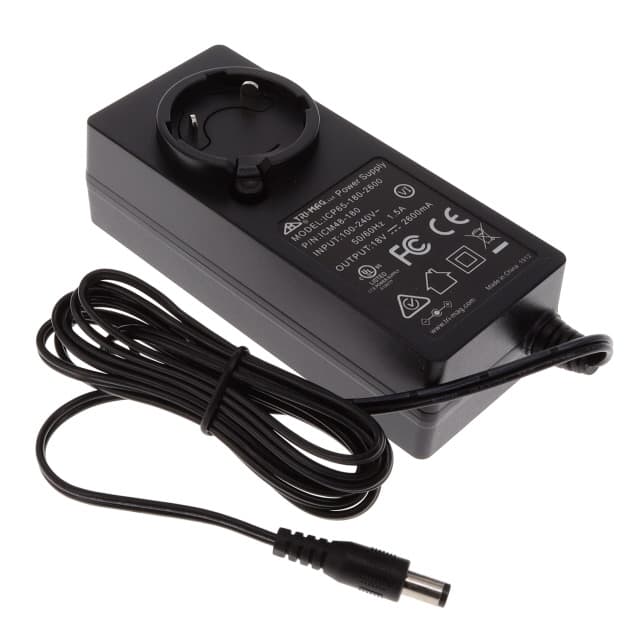

The Tri-Mag, LLC ICM48-180 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 18V output with a maximum current of 2.67A, providing a total power of 48W.
This adapter features universal input voltage compatibility, accepting 90-264 VAC at 47-63 Hz. It is certified with UL/cUL approval and meets DOE Level VI efficiency standards, ensuring energy-conscious operation. The adapter includes auto-recovery for overvoltage, overload, and short circuit protection.
With a compact form factor and a Class II rating, the ICM48-180 is suitable for various integration needs. It utilizes a standard NEMA 1-15P input connector and a 2.1mm I.D. x 5.5mm O.D. barrel plug output connector. The operating temperature range is from 0°C to 40°C, and it has a cord length of 59 inches (1.50m).
The ICM48-180 adapter provides an 18V output voltage and a maximum output current of 2.67A.
The ICM48-180 adapter has a power rating of 48W.
The ICM48-180 adapter meets the DOE Level VI efficiency rating.
The ICM48-180 adapter accepts a universal input voltage range of 90-264 VAC and an input frequency range of 47-63 Hz.
The ICM48-180 adapter uses a barrel plug with dimensions of 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
The ICM48-180 adapter can operate in a temperature range of 0°C to 40°C.
