| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

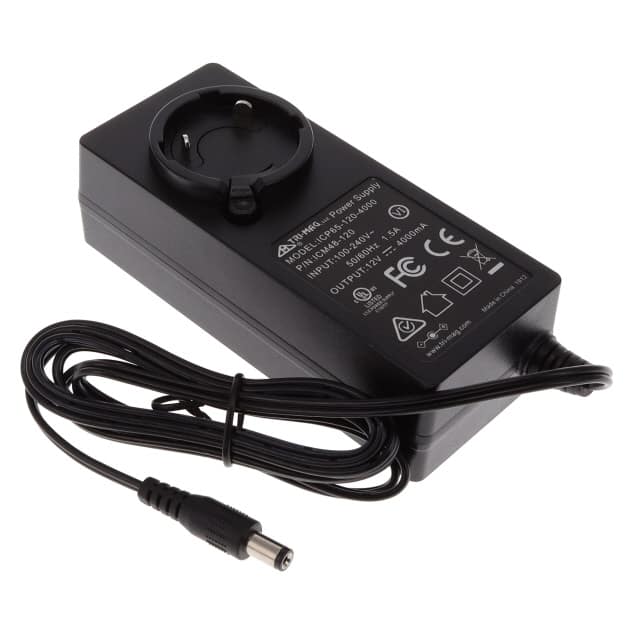

The Tri-Mag, LLC ICM48-120 is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V DC output with a maximum current of 4A, providing a total power of 48W.
This adapter boasts a universal input voltage range of 90-264Vac and operates at frequencies between 47-63Hz, making it suitable for international use. It meets DOE Level VI efficiency standards, ensuring energy savings and reduced heat generation. The unit features a compact wall mount form factor (Class II) with a cord length of 59 inches (1.50m) and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D.).
Safety and reliability are ensured through cUL, FCC, and UL approvals, adhering to standards like IEC/EN/UL 60950-1. The ICM48-120 offers essential protections including auto-recovery for overvoltage, overload, and short circuit conditions. It operates within a temperature range of 0°C to 40°C and has a calculated MTBF of 50,000 hours at 25°C.
The ICM48-120 provides a 12V DC output at a maximum current of 4A.
The ICM48-120 has a power rating of 48W.
The adapter supports a universal input voltage range of 90 to 264Vac.
Yes, the ICM48-120 meets DOE Level VI efficiency standards.
The operating temperature range for the ICM48-120 is 0°C to 40°C.
It uses a barrel plug connector with a 2.1mm inner diameter and a 5.5mm outer diameter.
